Weicon Copper Paste KP 1000 for high temperatures up to 1100 °C – 1kg
€ 47,94
- Description
- FAQ
- Additional information
- Reviews (8)
Description

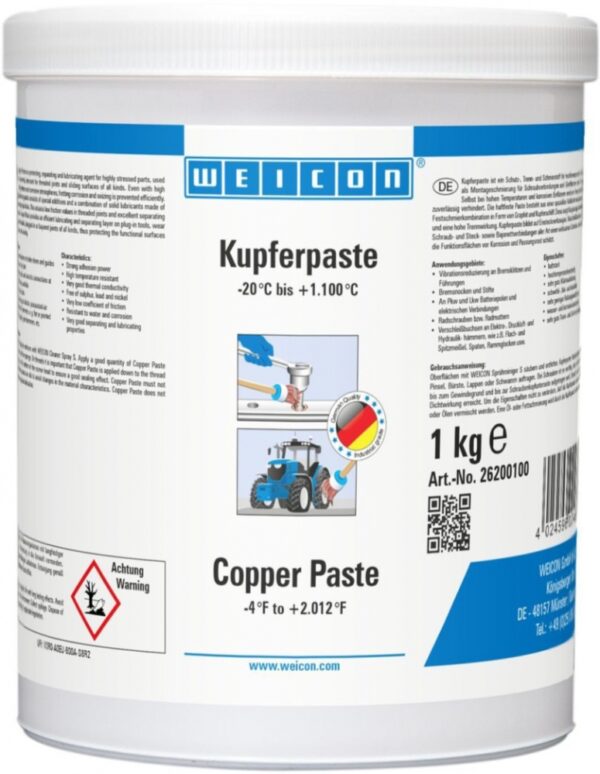

WEICON KP 1000 Copper Paste
- Protection, release, and lubricant for highly stressed parts at high temperatures
- High-temperature and corrosion resistant
- Strong adhesion
- Sulphur, lead, and nickel-free
- Temperature resistance: -20 °C to 1100 °C
- Pack size: 1 kg can
- Available sizes: 30 g, 120 g, 0.4 kg, 0.45 kg, 0.5 kg, 85 g, 10 kg
Surface pre-treatment
- To achieve optimum results, the mounting parts should be degreased and cleaned, e.g. with WEICON Surface Cleaner (roughen the surfaces, if required).
- For used screws, treat with a wire brush and clean with WEICON Cleaner S.
- WEICON Copper Paste can also be used on uncleaned surfaces, e.g. screws as delivered. However, the cleaner the surface, the better the results achieved.
Processing
- Clean and degrease surfaces with WEICON Spray Cleaner S.
- Apply Copper Paste evenly with a brush, cloth, or sponge.

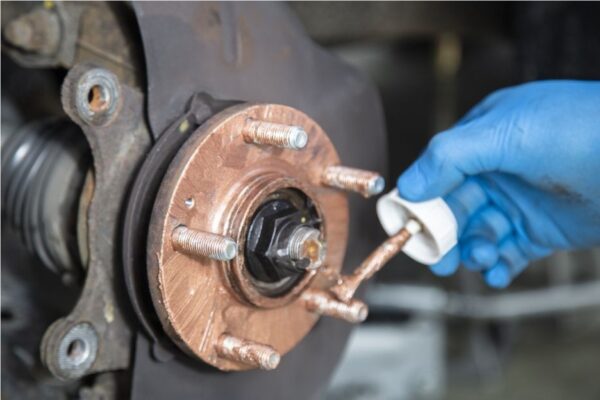

- For screws, it is important that the Copper Paste is applied down to the thread root and under the screw head to ensure a good sealing effect.
- To avoid altering the properties, Copper Paste must not be mixed with greases or oils.
- Copper Paste does not replace oil or grease lubrication.
Storage
- Keep tightly closed in original packaging.
- Do not store together with oxidizing agents.
- Keep container tightly closed and store in a cool, well-ventilated place.
- Shelf life: 24 months
Instructions for use
- When using WEICON products, the physical, safety-related, toxicological and ecological data and regulations in our EC safety data sheets (www.weicon.com) must be observed.
Technical specification
| Consistency classification (DIN 51818) | NLGI-Class 1 |
| Base | Mineral oil |
| Solid lubricant | Copper powder/Graphite |
| Density (DIN 51757) | 1.1 g/cm³ |
| Silicone-free | yes |
| VKA-Test Good Load (DIN 51350) | ON |
| VKA-Test Weld Load (DIN 51350) | 3,200 N |
| VKA-Test Calotte Value (DIN 51350, 1Min/1000N) | 0 mm |
| Worked Penetration (DIN ISO 2137) | 310-340 1/10 mm |
| Heat Capacity (DIN EN ISO 22007-4) | 1.713 J/(g-K) |
| Thermal Conductivity | 0.392 W/m-K |
| Dielectric Strength (DIN EN 60243-1 (20°C)) | 1.7 kV/mm |
| Drop Point (IP 396) | +180 °C |
| Base Oil Viscosity (40°C) (DIN 51562) | 180 mm²/s |
| Thermal Diffusivity | 0.208 mm³/s |
| Temperature resistance | -20 °C to 1.100 °C |
| Shelf life | 24 months |
| Thickener | Alu-Complex-Soap |
| Friction values | |
| Friction values plain steel (M10 10.9) | |
| Total friction coefficient | 0.13 (min. 0.11) |
| Thread friction coefficient | 0.14 (min. 0.13) |
| Head friction coefficient | 0.12 (min. 0.10) |
| Friction values V4A (M10 | A4 70) | |
| Total friction coefficient | 0.16 (min. 0.13) |
| Thread friction coefficient | 0.16 (min. 0.12) |
| Head friction coefficient | 0.16 (min. 0.13) |
| Friction values galvanized steel (M10 | 10.9) | |
| Total friction coefficient | 0.10 (min. 0.09) |
| Thread friction coefficient | 0.11 (min. 0.10) |
| Head friction coefficient | 0.09 (min. 0.08) |
| Approvals / Guidelines | IMPA-Code: 450888/89/90/91/92 |
Hazard Information (CLP)
Signal word: Warning
Hazard Statements (H-phrases)
- H410: Very toxic to aquatic life with long lasting effects.
Precautionary Statements (P-phrases)
Response:
- P391: Collect spillage.
Storage:
- Not applicable.
Disposal:
- P501: Dispose of contents/container in accordance with local regulations.
Prevention:
- P273: Avoid release to the environment.
Additional Labelling (EUH-phrases)
- Not applicable.
Other Relevant Information
- Annex XVII – Restrictions on the manufacture, placing on the market and use of certain dangerous substances: Not applicable.
WEICON GmbH & Co. KG, Königsberger Strasse 255, 48157 Münster, GERMANY, +49 251 9322-0, [email protected], www.weicon.de
Downloads
Additional information
| Property | – |
|---|
