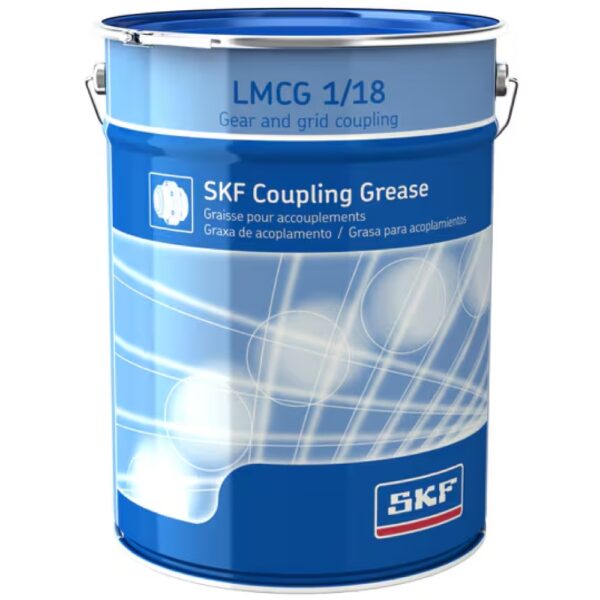

SKF LMCG 1/18 Grid and gear coupling grease NLGI-1 18kg
€ 455,94
- Description
- FAQ
- Additional information
- Reviews (7)
Description
SKF LMCG 1/18 A polyethylene thickened and mineral oil based grease (NLGI 1) which also uses a lithium complex thickening technology. The grease is formulated to withstand high centrifugal forces and high-torque applications for grid and gear (flexible) couplings even where severe shock loadings, misalignment and vibration occur. Leakage is prevented at high speeds and the grease is stable in consistency.
- Pack size: 18 kg bucket
- Also available in: 420 ml cartridge, 2 kg can
Application
- The special additive formulations make the grease suitable for applications subjected to high loads, high torque, wet environments, a wide range of speed regimes and wide range of temperatures.
- Grid and gear couplings
- Flexible heavy duty grif and gear couplings
Specifications & Approvals
- DIN 51825 code – GOG1G-0
- AGMA code – CG-2
Advantages
- Excellent resistance to oil separation
- High acceleration and high operating speeds
- Excellent high-torque lubrication
- High corrosion protection
- Exceeds AGMA Type CG-1 and AGMA Type CG-2 requirements
- High coupling wear protection
- Excellent oxidation stability
- Due to low oil bleeding tendency, suitable for use in centralized lubrication systems
Technical specifications
| Manufacturer number | LMCG 1/18 |
| NLGI consistency class | 1 |
| Thickener | Polyethylene |
| Colour | Brown |
| Base oil type | Mineral |
| Operating temperature range, °F | 32 to 248 |
| Dropping point (min), ISO 2176, °F | 160 |
| Base oil viscosity, DIN 51562 at 40 °C, mm²/s | 761 |
| Base oil viscosity, DIN 51562 at 100 °C, mm²/s | 44 |
| Penetration, DIN ISO 2137, Worked, 60 strokes, 10⁻¹mm | 310-340 |
| Penetration, DIN ISO 2137, Prolonged, 100 000 strokes, 10⁻¹mm | +25 (max) |
| Corrosion protection, Emcor, ISO 11007, Distilled water | 0-0 |
| Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl | 2-2 |
| Water wash-out test, ISO 11009, % at 100 °F | <10 |
| Copper corrosion (max), DIN 51811 / ASTM D4048, 24 hrs at 100 °C | 1b |
| Rolling bearing grease life (max), ROF test, L50 life, 10000 r/min, hrs at 104 °C | 700 |
| Flow pressure, DIN 51805-2, mBar at 14 °F | <1400 |
| EP performance, 4 ball, Wear scar (max), DIN 51350/5, 1400 N, in | 0.02 |
| EP performance, 4 ball, Weld load (min), DIN 51350/4, lbf | 719 |
| Shelf life, years | 5 |
| Density, DIN 51757 at 20 °C / 68 °F, g/cm³ | 0.94 |
SKF GmbH, Gunnar-Wester-Straße 12, 97421 Schweinfurt, GERMANY, +49 9721 56-0, [email protected], www.skf.com
