Perma STAR CONTROL Gen 3.0 Drive for precise automated lubrication
€ 137,94
- Description
- FAQ
- Additional information
- Reviews (5)
Description

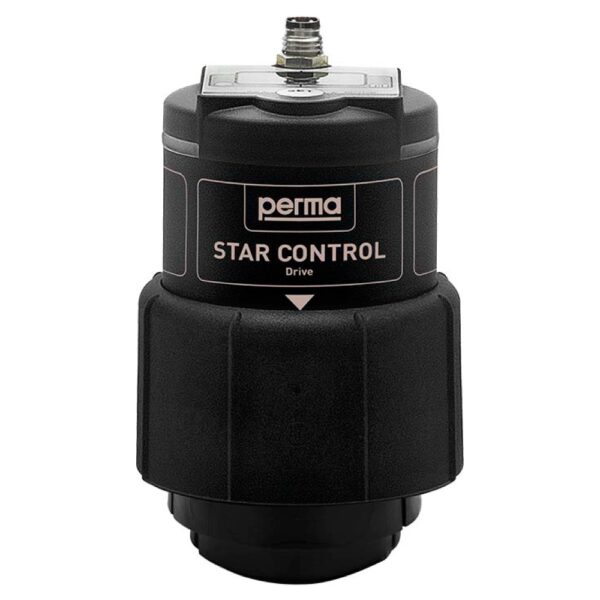

Perma STAR CONTROL Gen. 3 – Enables automated and highly precise lubrication up to a distance of 5 m | N° 118216

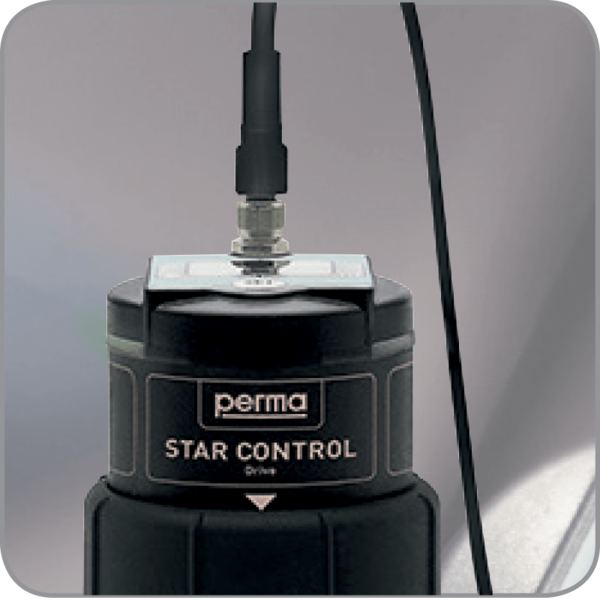

The perma STAR CONTROL is supplied with external power via cable. The operating status can be transmitted to a PLC and evaluated.
The two integrated operating modes TIME and IMPULSE offer flexible use. In TIME mode, lubricant discharge is based on operating hours. In IMPULSE mode, a precisely defined quantity is dispensed as soon as voltage is supplied.
The perma STAR CONTROL consists of an electromechanical drive and an LC with 60, 120, 250 or 500 cm³ of lubricant. The required mode is set on the drive. Lubrication is precise and temperature-independent at a counter pressure up to 6 bar.
Characteristics
- Flexible handling via simple setting of TIME or IMPULSE mode; can be changed at any time
- Fast, simple control of settings, remaining impulses or operating hours until exchange
- Freely selectable PIN protects against possible tampering
- Reliable, precise lubricant discharge independent of temperature and counter pressure
- Quick function control due to visual or electronic signals on the lubrication system and plant error reporting system saves time and relieves maintenance workers
- Mounting up to 5 m outside of dangerous areas or at easy-to-access locations increases workplace safety
- Higher equipment availability since LC can be easily exchanged during running operation
- Lubrication point can be purged to clear blockages
Field of application

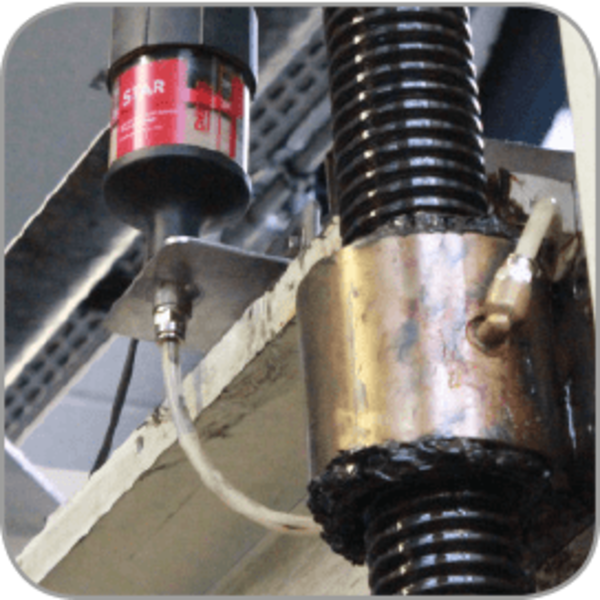

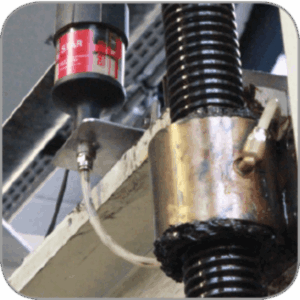

- perma STAR CONTROL is used to lubricate roller and sliding bearings, sliding guides, open gears, gear racks, spindles, shaft seals and chains.
- Due to the precise lubricant metering, perma STAR CONTROL is ideally suited for lubrication of electric motors with specified lubricant quantities.
- The system is protected against dust and water jets, subject to correct assembly of the individual parts (IP65).
Technical specifications
- Drive: Electromechanical
- Power supply: External: 9 – 30 V DC, I (max) 0,5 A
- Discharge period: 1, 2, 3, …, 12 months / Impulse control
- Lubricant volume: 60 cm³, 120 cm³, 250 cm³, 500 cm³
- Operating temperature: -40 °C to +60 °C
- Pressure build-up: 6 bar
- Number of outlets: 1
- Protection class: IP 65
- Lubricants: Grease up to NLGI 2 / oil
- Max. tube lengths: 5.00 m
perma-tec GmbH & Co. KG, Hammelburger Str. 21, 97717 Euerdorf, Deutschland, +49 9704 609-0, [email protected]
