Perma PRO C LINE Multi-point lubrication system (electromechanical) | N° 106935

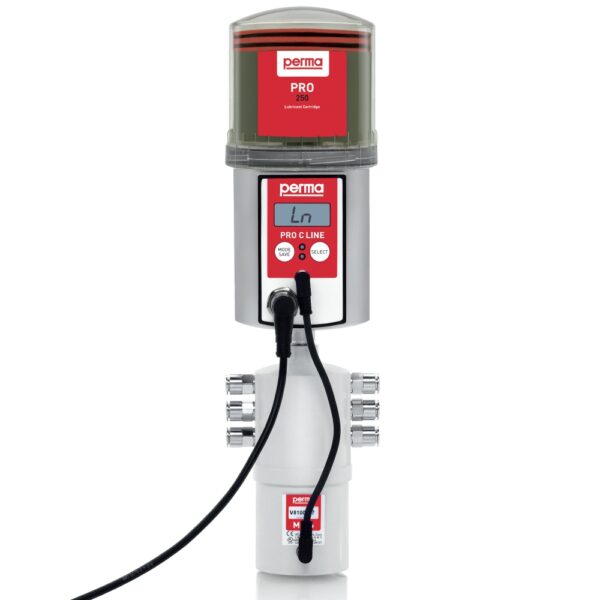

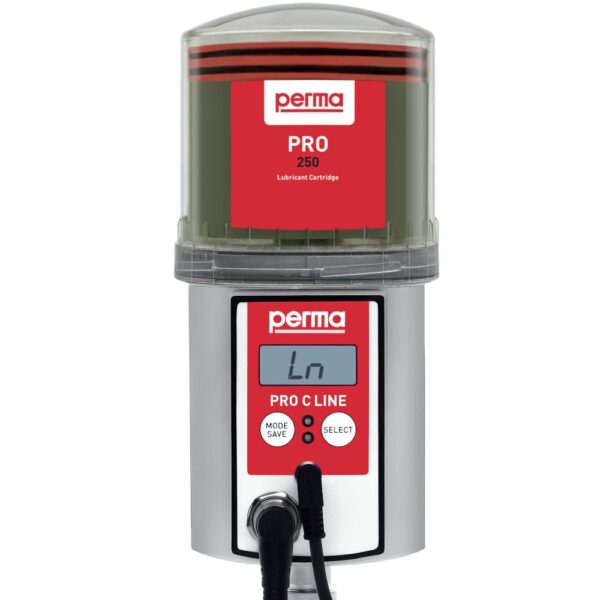

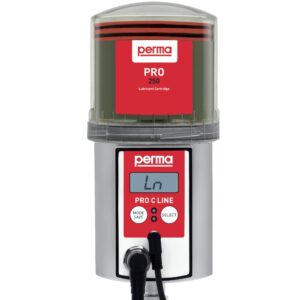

PRO C LINE Multi-point lubrication system
- Perma PRO C LINE is a special multi-point lubrication system with 1 – 6 outlet connections for linear guides.
- The lubricant discharge is flexible.
- Each outlet can be adapted to manufacturer specifications.
- The PRO LC is available in two sizes (filled with 250 cm³ / 500 cm³ of grease) and supplies lubrication points with lubricant for up to 2 years.
- The high pressure build-up enables remote mounting with tube extensions of up to 5 m (per outlet).

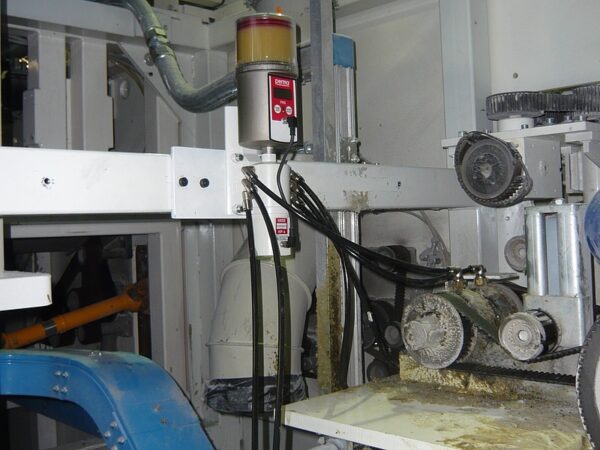

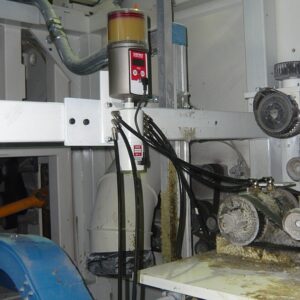

- Remote mounting not only increases workplace safety, but also makes it possible to lubricate linear guides while they are in operation. perma PRO C LINE receives its power from the machine and can be monitored and controlled via PLC.

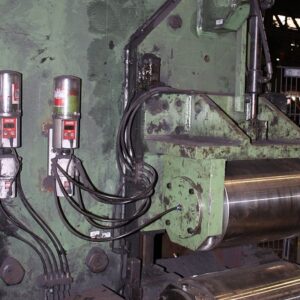

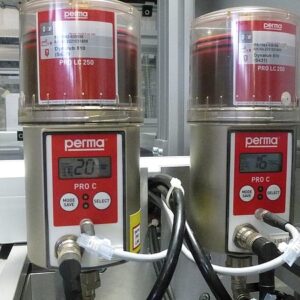

Applications

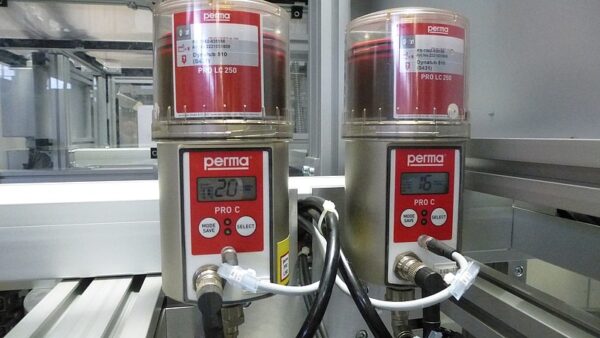

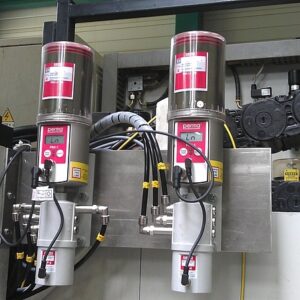

- Main applications for the multi-point lubrication system perma PRO C LINE are linear guides.
- Application fields range from various linear guide systems and drives in the automotive industry to the paper industry.

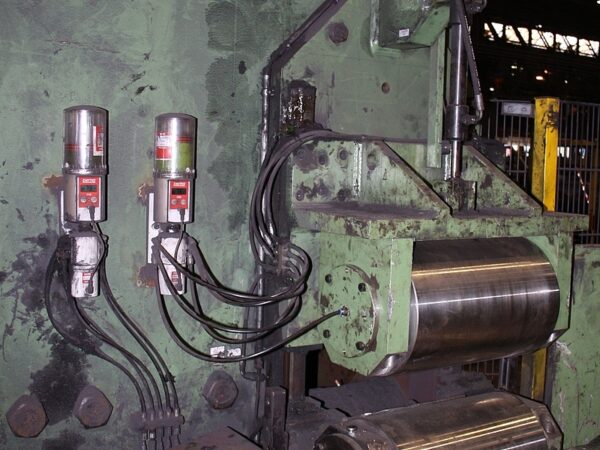

- Other applications are roller and sliding bearings, open gears and spindles.
Technical specifications
- Drive: Electromechanical
- Power supply: External: 15–30 V
- Housing: Metal / Transparent plastic
- Discharge period: Pause time in days (24 h) / Discharges for each outlet
- Lubricant volume: 250 cm³, 500 cm³
- Operating temperature: -20 °C to +60° C
- Pressure build-up: 25 bar
- Number of outlets: 1 – 6
- Lubricants: Grease up to NLGI 2
- Max. tube lengths: 5.00 m

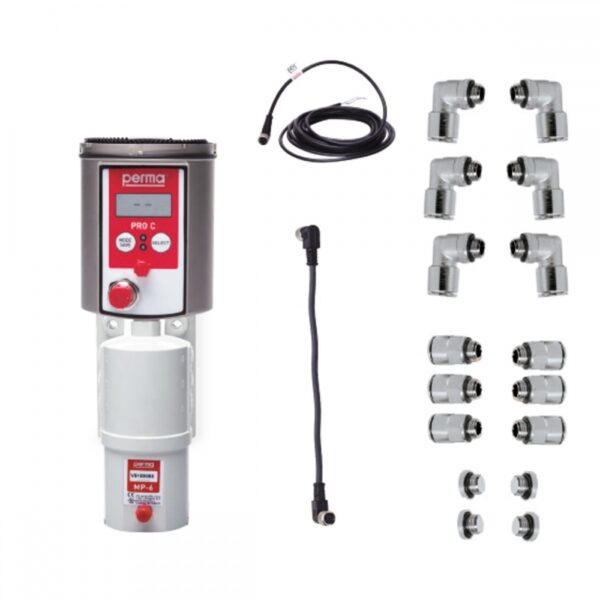

Included in delivery
- PRO C LINE drive
- PRO C M12 connection cable (5m)

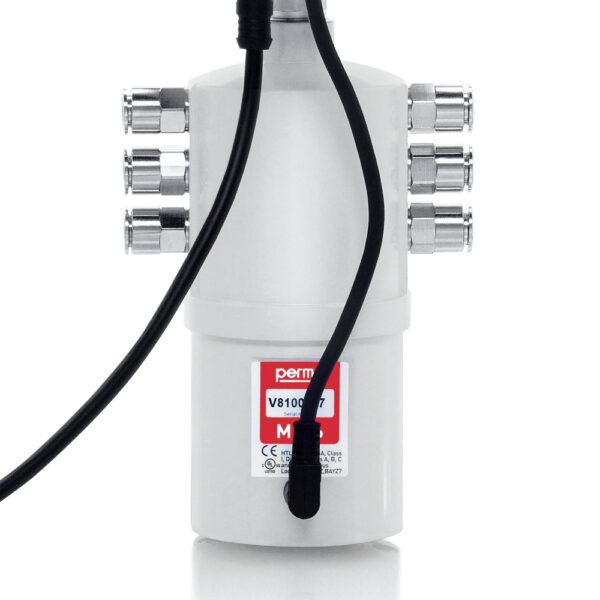

- PRO MP-6 distributor
- PRO MP-6 connection cable (14 cm)
- PRO bracket
- Hose connector G1/8a f.
- Hose aØ 8 mm straight (6x)
- Hose connector G1/8a f.
- Hose aØ 8 mm 90° (6x)
- Plug G1/8 f. MP-6 (4x)
Note: Lubricant cartridges LC 250 / 500 cc must be ordered separately
perma-tec GmbH & Co. KG, Hammelburger Str. 21, 97717 Euerdorf, Deutschland, +49 9704 609-0, [email protected]
