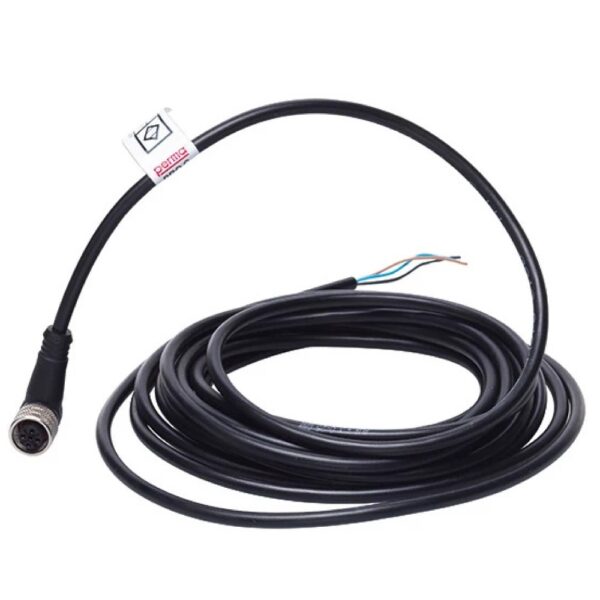

Perma 106942 PRO C / PRO C LINE M12 Connecting cable 5m
€ 23,94
- Description
- FAQ
- Additional information
- Reviews (14)
Description
Cable PRO C / PRO C LINE M12, 5 m | N° 106942
- Outside material: Polyurethane
- Isolation material: Polypropylene
- Conduct material: Copper-Conducter
- Color: black
Dimensions
- Outer diameter: 4,4 mm
- Inner diameter: 3,0 mm
- Wall thickness: 0,7 mm
Technical data
- Cable type: Polyurethane
- Number of poles: 4
- Conducter cross-section: 4 x 0,25 mm²
- Wire color: Brown, white, blue, black
- Connector: M12 angulate
- Overvoltage category: II
- Cable weight: 25 kg/km
- Insolation resistance: >100 GΩ *km ( 20 °C)
- Conducter resistance: max. 78 Ω/km ( 20 °C)
- Minimum bending radius, static installation: 22 mm
- Minimum bending radius, flexible installation: 44 mm
- Operating temperature range, static installation: -40 °C – +80 °C
- Operating temerature range, flexible installation: -25 °C – +80 °C
- Protection class: IP 68
- Flammability class UL94: HB
- Absence of PWIS: confirmed
- Absence of silicone: confirmed
- Absence of halogen: confirmed
- Drag chain suitability: confirmed
perma-tec GmbH & Co. KG, Hammelburger Str. 21, 97717 Euerdorf, Deutschland, +49 9704 609-0, [email protected]
Downloads
Additional information
| Property | – |
|---|
