Perma 101393 PA – Tube up to +80 °C oØ 8 mm x iØ 6 mm PA
€ 5,76
- Description
- FAQ
- Additional information
- Reviews (14)
Description

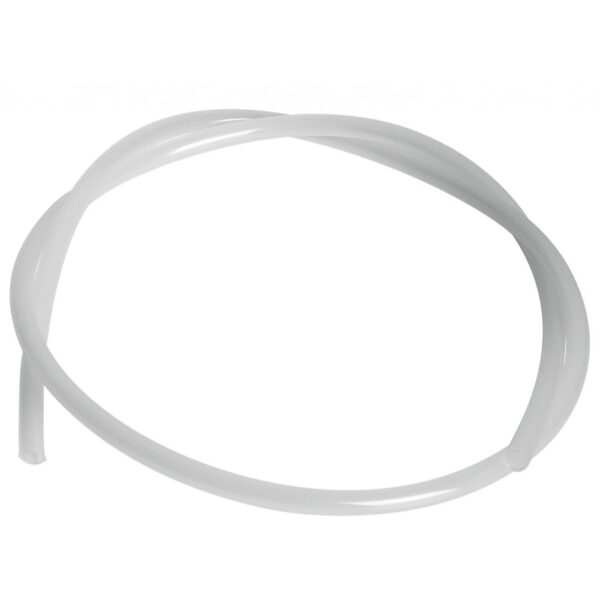

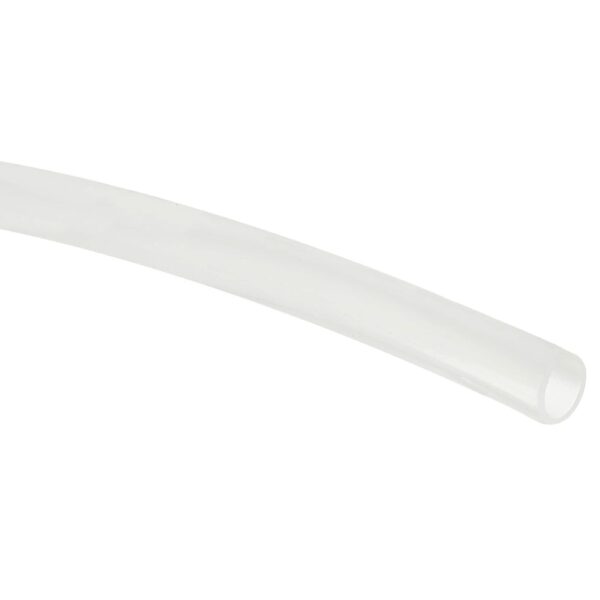

Tube up to +80 °C oØ 8 mm x iØ 6 mm (PA) | N° 101393
- Material: Polyamide 12
- Color: translucent
Dimensions
- Outer diameter: 8 mm
- Inner diameter: 6 mm
- Wall thickness: 1 mm
- Length: per meter available (For custom length, please contact us here)
Mechanical properties
- High temperature, pressure, chemical an stress cracking resistance, high impact strength, UV-resistant, high wear resistance, resistant to water, low ressure loss, calibrated
Chemical resistance
- Resistant to most oils, greases, fuels, organic solvents, diluted acids, alkaline solutions and salts.
Technical specifications
- Max. operating pressure at +20 °C: 19 bar / 27 psi
- Bursting pressure at +20 °C: 57 bar / 825 psi
- Minimum bending radius at +20 °C: 40 mm
- Operating temperature range: -40 °C to +80 °C
- Absence of silicone: Confirmed
- Absence of halogen: Confirmed
- Drag chain suitability: Min. bending radius of 10x tube-Ø
perma-tec GmbH & Co. KG, Hammelburger Str. 21, 97717 Euerdorf, Deutschland, +49 9704 609-0, [email protected]
Downloads
Additional information
| Length (in meters) | 1 M, 2 M, 3 M, 4 M, 5 M |
|---|
