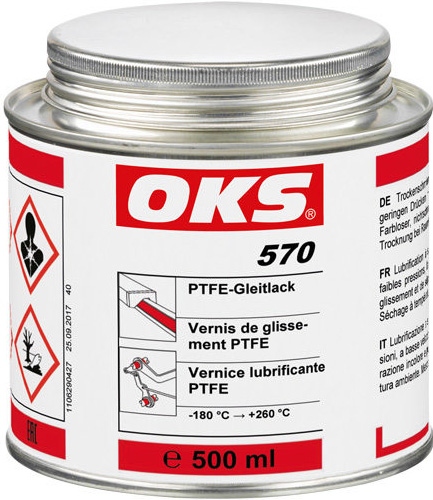

OKS 570 PTFE-bonded coating 500ml can

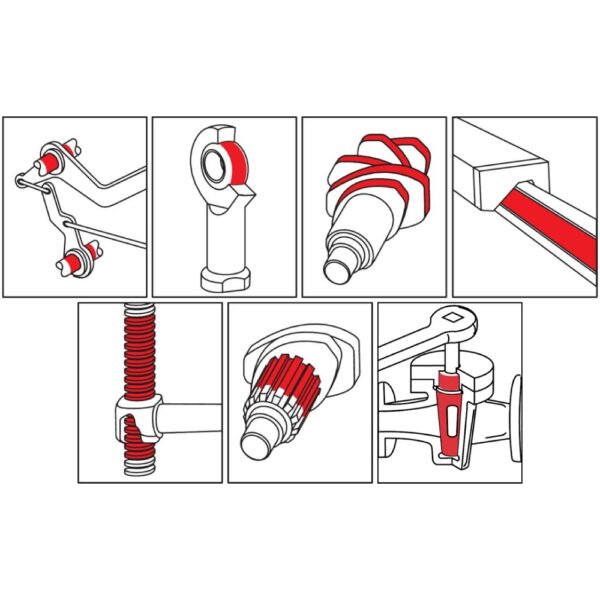

Field of application

• Dry lubrication of the most varied materials sliding on top of or rubbing against each other (such as metals, wood, ceramic, rubber, and also adhesives or paintable plastics)
• For packaging machines, sliding areas in the plastic and textile industry, rollers, and slides in transportation areas, etc.
• Anti-stick coating of seals or sealing surfaces of all kinds to prevent sticking-on
• To cure the squeaking noises of soft on hard materials
• For water-repellent impregnation of absorbent materials
• Separating film in cast resin applications

Properties

• Dry, non-soiling film
• Highly effective due to good adhesion to prepared substrates
• Colourless and odourless low-friction coating with non-stick properties
• Prevents frictional corrosion
• Dries at room temperature

Technical Data

• Manufacturer’s number: 00570031
• Composition: PTFE, silicone resin, gasoline, ketones, UV indicator
• Operating temperature: -180°C to +260°C
• Drying time at 20°C: 15 minutes
• Optimal layer thickness: 5 to 20 µm
• Processing temperature: Room temperature
• Density (20°C): 0.83 g/ml
• Color: Whitish
• Press-Fit Test: µ = 0.07
• Thread friction coefficient (M10/8.8): µ = 0.10
• Packaging: 500 ml can
• Also available in: 400 ml spray can (OKS 571), 5 kg bucket, 25 kg bucket, 180 kg drum

Applications notes

• For best adhesion, clean the surfaces.
• Best way is to clean mechanically first and then with OKS 2610 or OKS 2611 universal cleaner.
• The surfaces to be treated must be bright metal and dry.
• Chemical or mechanical pretreatment of surfaces may extend the service life of the non-stick paint.
• Stir the paint thoroughly before use.
• Apply in an evenly thin film to the prepared surfaces, preferably by spraying or dipping, in individual cases also by brush.
• Avoid local excess.

Industries

• Rail vehicle technology
• Municipal services
• Iron and steel industry
• Rubber and plastic processing
• Logistics
• Paper and packaging industry
• Chemical industry
• Shipbuilding and marine technology
• Plant and machine (tool) engineering
• Glass and foundry industry
