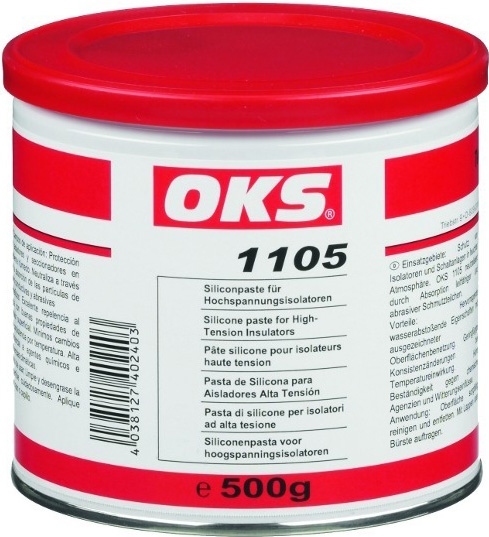

OKS 1105 insulating paste 500g tin

prevents the formation of electrically conductive layers and minimises the risk of flashovers and dielectric losses. The insulators and switchgear covered with the paste thus maintain a good insulation resistance

Field of application

• Sealing lubrication for electrical or electronic equipment such as relays, plug-in connections, cable lugs and lamp sockets
• Protection of insulators and switchgear in humid atmospheres, for example of junction boxes, screw terminals, overload cutouts at high-voltage pylons, connecting cables and terminal connections
• Lubricant for plastic screw connections and other moving parts of metal, ceramic, plastic

Properties

• Excellent water repellent properties
• Excellent surface wetting
• Good adhesion on glass, porcelain and plastics
• Stable consistency across a wide temperature range
• Very good resistance to chemical and weather-based influences (e.g. ozone, UV radiation)
• Neutral with regard to many materials
• Small change in the dielectric properties across a wide temperature range

Technical specifications

• Temperature range -40°C to max +200°C
• Electrical resistivity (25°C) > 10^14Ωcm
• Dielectric constant 2.75
• Content 500g
• Tin

Industries

• Rail vehicle technology
• Municipal services
• Iron and steel industry
• Rubber and plastic processing
• Logistics
• Paper and packaging industry
• Chemical industry
• Shipbuilding and marine technology
• Plant and machine (tool) engineering
• Glass and foundry industry

​




Information on product safety (Manufacturer, Contact)

OKS Spezialschmierstoffe GmbH, Ganghoferstr. 47, D-82216 Maisach-Gernlinden, +49 8142 3051 500, [email protected], www.oks-germany.com
