Mobiltemp SHC 100 Bearing grease for extreme temperatures NLGI-2 380g

Mobil Mobiltemp SHC 100 is a high performance PAO-based bearing grease for high temperature applications (NLGI grade 2).

Application

• High speed bearings and thrust bearings where a wide temperature range is desired
• It is particularly suitable for use in electric motor bearings where operating conditions demand reduced friction, low wear and long service life
• Extreme temperature applications with a recommended operating temperature range of -50º C to 200º C (with appropriate relubrication intervals).

Features

• Outstanding high and low temperature performance
• Excellent resistance to oxidation and maintenance of grease structure at high temperatures
• Low coefficient of traction
• Outstanding low temperature pumpability
• Very good antiwear protection

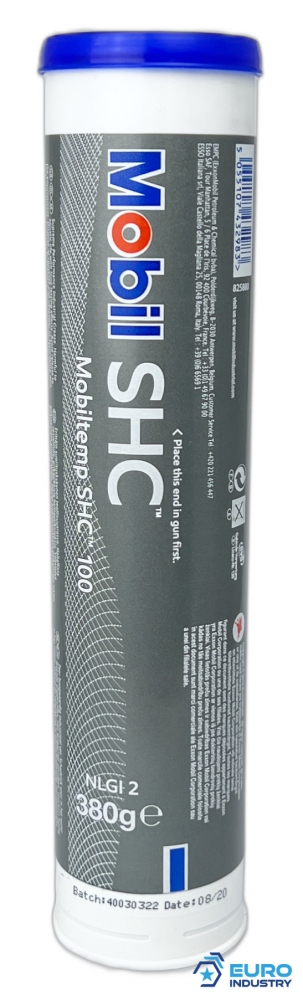

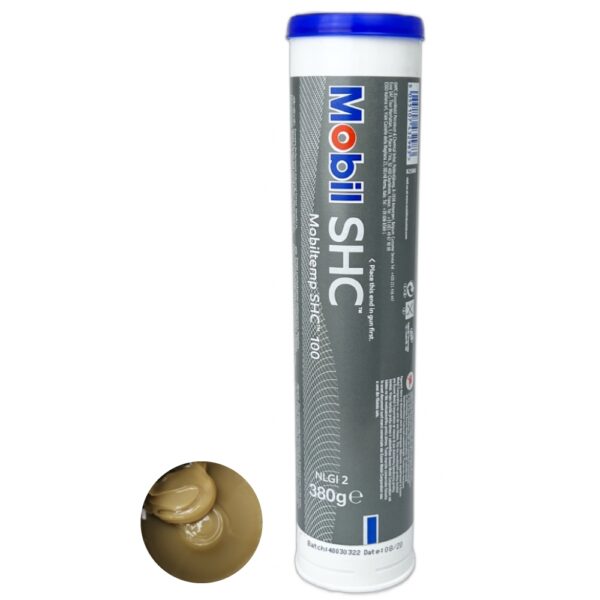

• Container size: 380g cartridge

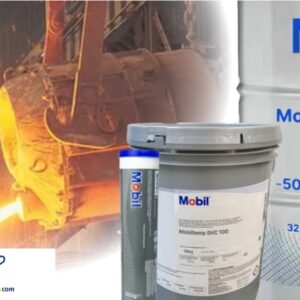

• Also available in: 18 kg bucket, 50 kg, 180 kg drum

Advantages and Potential Benefits

• Reduced downtime and lower maintenance costs
• Extended service life with longer intervals between relubrication
• Reduced energy consumption potential
• Easier low temperature start-up and lower running torque
• Extended bearing life, reduced unanticipated downtime

Technical specifications

Manufacturer Part Number	149617
Mobiltemp SHC Series	100
NLGI Grade	2
Thickener Type	Clay

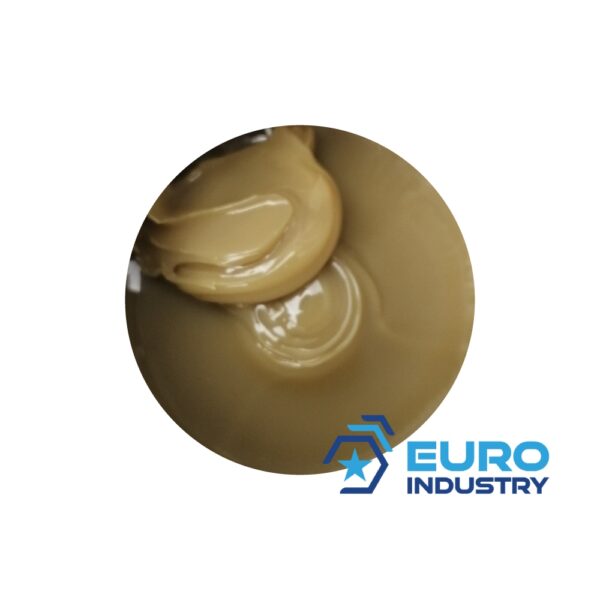

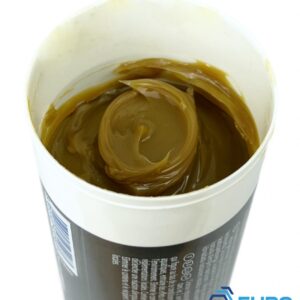

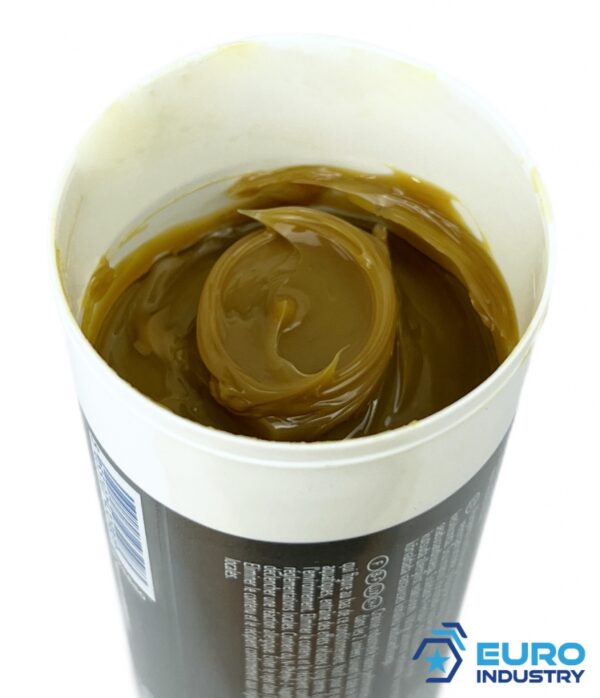

Color, Visual	Light Brown
Penetration, Worked, 25ºC, ASTM D 217	280
Dropping Point, ºC, ASTM D 2265	260+
Kinematic Viscosity @ 40 C, mm2/s, ASTM D445	100
4-Ball Wear, ASTM D 2266, Scar, mm	0.4
4-Ball Weld, ASTM D 2596, Load, Kg	200+

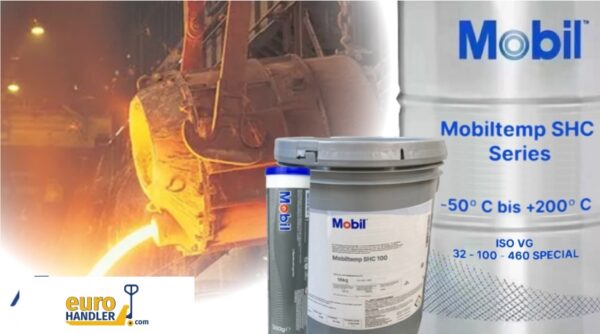

Product Description Mobiltemp SHC™ Series

Exxon Mobil Mobiltemp SHC™ Series products are supreme performance antiwear greases primarily intended for high temperature applications. They combine the unique features of polyalphaolefin (PAO) synthetic base fluids with those of an organo-clay, non-soap thickener. The excellent resistance to thermal/oxidative degradation provided by the PAO base, coupled with the excellent high temperature structural stability and high dropping point of the clay thickener result in outstanding high temperature greases. The wax-free nature of the synthetic base fluid and its high viscosity index also provide superior low temperature lubrication as well as excellent film protection at high temperatures.

Because the PAO base oil has low traction properties (compared to mineral oil), Mobiltemp SHC Series also offer the potential for energy savings through reduced friction and lower torque, and reduced temperatures in the load zone of rolling element bearings. The Mobiltemp SHC Series is available as three products: Mobiltemp SHC 32 is an NLGI 1 1/2 grade with ISO VG 32 base oil; Mobiltemp SHC 100 is an NLGI 2 grade with ISO VG 100 base oil; Mobiltemp SHC 460 Special is an NLGI 1 grade with ISO VG 460 base oil, plus molybdenum disulphide for extra wear protection.

The Mobiltemp SHC Series of greases is used in numerous high temperature applications, as well as applications where low temperature start-up or running torque is important. They provide excellent grease life at high temperatures and offer extended relubrication periods and energy savings potential.

Mobiltemp SHC Series greases have become the products of choice for many users, in many industries worldwide. Their reputation is based on very wide application temperature range, and their excellent overall performance.



Information on product safety (Manufacturer, Contact)

EXXONMOBIL CENTRAL EUROPE HOLDING GMBH, Ericusspitze 2, 20457 Hamburg, GERMANY, +49 40 6393 0, [email protected], www.exxonmobil.de
