Mobil Unirex N3 High temperature bearing grease 50kg barrel
€ 791,94
- Description
- FAQ
- Additional information
- Reviews (15)
Description
UNIREX™ N3 grease is a premium-quality, lithium-complex product suitable for high-temperature service in rolling-element bearings
- These versatile greases can be used in a wide range of industrial applications and are particularly recommended for electric-motor lubrication.
- Unirex N greases exhibit excellent high and low temperature performance, resistance to water and corrosion, and long service life in a range of bearing applications.
- UNIREX N greases are not intended to be used under extreme pressure conditions where extra anti-welding properties are required.
- UNIREX N 3 meets the requirements of Lubricating Grease DIN 51825 – K3N – 20L and ISO L-XBDHA 3

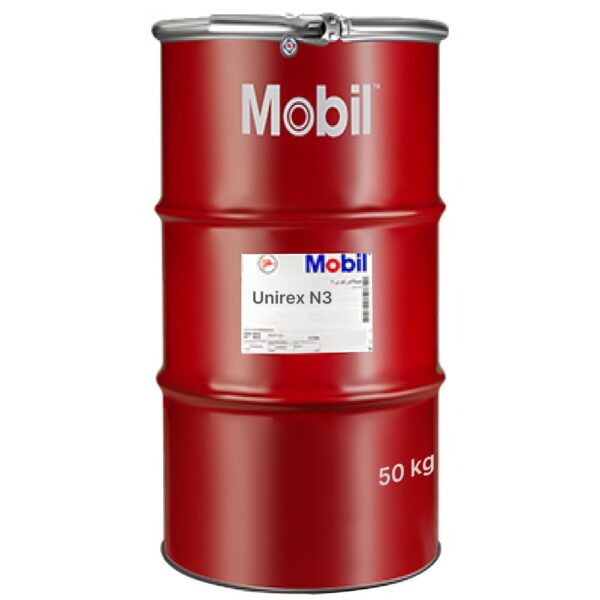

- Size: 50 kg barrel

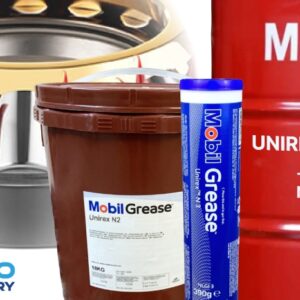

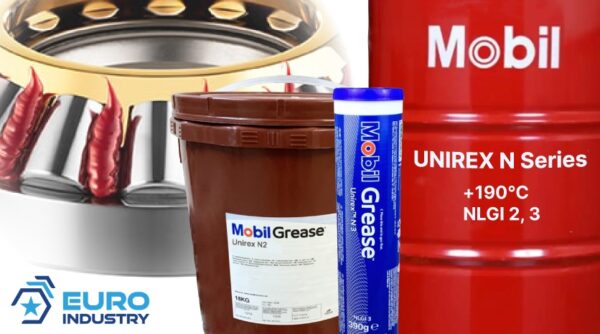

- Also available in: 390g cartridge, 18 kg bucket
Applications
- Most of the uses for UNIREX N involve manual methods of application.
- Although UNIREX N 2 is suitable for use in automatic centralized systems, equipment served by these systems would normally not require the long-life properties of UNIREX N, since one of the functions of automatic systems is to replenish the lubricant at relatively short time intervals. UNIREX N 3 should not be used in such systems.
Specifications
- DIN 51825 – K3N – 20L
- ISO 6743-9: 2003 L-XBDHA 3
Benefits
- Lithium-complex thickener resists softening / running out of bearings at temperatures up to 190°C
- Laboratory bearing rig tests show outstanding continuous lubrication performance at bearing temperatures of up to 140°C
- Start-up power requirements are low at temperatures down to at least -20°C. Meets DIN 51825 low temperature torque requirements at -20°C
- Exhibits excellent resistance to softening due to mechanical working
- Resists water washout and protects bearings against corrosion
- Channelling characteristics provide excellent performance in high- speed deep-groove ball bearings. Unirex N3 is recommended where DmN (mean bearing diameter X rpm) exceeds 360,000
Technical specifications
| Manufacturer number | 152925 |
| Grade | NLGI 3 |
| Thickener Type | Lithium Complex |
| Base Oil Viscosity of Greases @ 40 C, mm2/s, AMS 1697 | 115 |

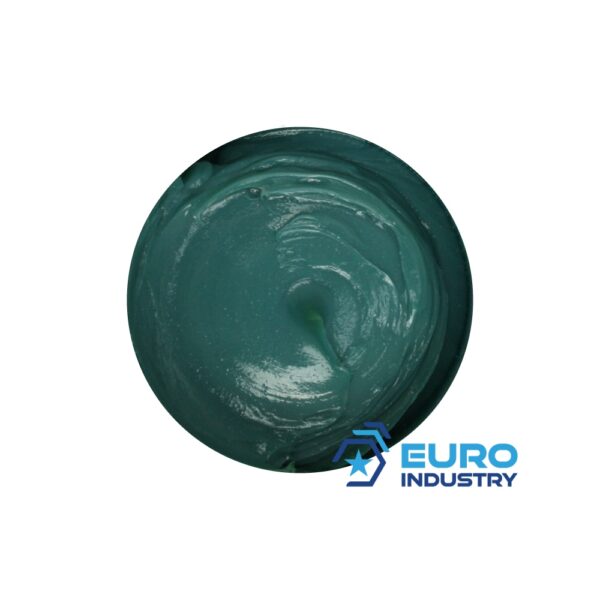

| Color, Visual | Green |
| Dropping Point, °C, ASTM D2265 | 210 |
| Oil Separation, 30 h @ 100 C, mass%, ASTM D6184 | 0.6 |
| Penetration, 100 KX, 0.1 mm, ASTM D217 | 30 |
| Penetration, 60X, 0.1 mm, ASTM D217 | 235 |
| SKF Emcor Rust Test, Distilled Water, Bearing 1, ASTM D6138 | 0 |
| SKF Emcor Rust Test, Distilled Water, Bearing 2, ASTM D6138 | 1 |
| Viscosity Index, ASTM D2270 | 95 |
| Water Resistance, 1 h @ 79 C, wt%, ASTM D1264 | 3.5 |
EXXONMOBIL CENTRAL EUROPE HOLDING GMBH, Ericusspitze 2, 20457 Hamburg, GERMANY, +49 40 6393 0, [email protected], www.exxonmobil.de
Downloads
Additional information
| Property | – |
|---|
