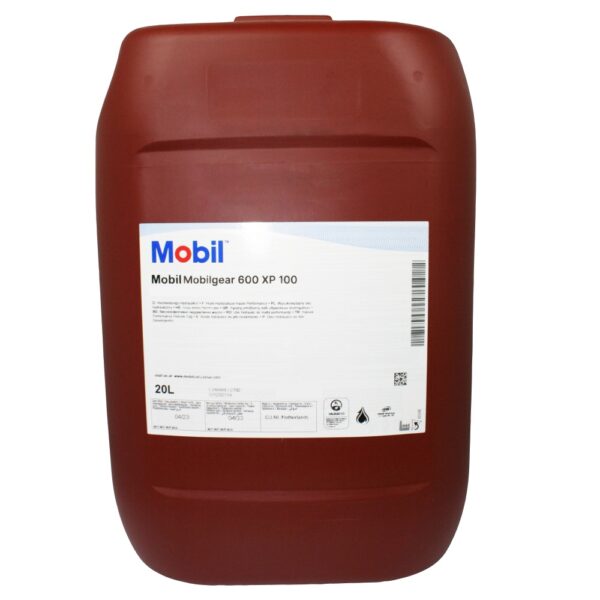

Mobil Mobilgear 600 XP 100 High performance gear oil CLP 20L canister

Mobil Mobilgear 600 XP 100 is an extra high performance gear oil (CLP, ISO VG 100) having outstanding extreme pressure characteristics and load-carrying properties, intended for use in all types of enclosed gear drives with circulation or splash lubrication systems.

Application

• For spur, helical, bevel and worm gearing
• Industrial gearing for conveyers, agitators, dryers, extruders, fans, mixers, presses, pulpers, pumps (including oil well pumps), screens, extruders and other heavy duty applications
• Marine gearing including main propulsion, centrifuges, deck machinery such as winches, windlasses, cranes, turning gears, pumps, elevators and rudder carriers

• Non-gear applications include shaft couplings, screws and heavily loaded plain and rolling contact bearings operating at slow speeds.

Specifications & Approvals

• DIN 51517-3:2009-06 CLP gear oils
• Mueller-Weingarten DT 55 005 – CLP 100
• AGMA 9005-E02-EP

Features

• Enhanced gear wear protection from micropitting
• Reduced debris denting from generated wear particles
• Improved bearing wear protection
• Outstanding compatibility with a range of seal materials
• Excellent resistance to oil oxidation and thermal degradation
• High resistance to sludge and deposit formation
• Wide range of applications
• Size: 20l canister
• Also available in: 208l barrel

Advantages and Potential Benefits

• Less gear and bearing wear resulting in less unexpected downtime
• Up to 22% improvement in bearing life reducing bearing replacement costs and improving productivity
• Improved bearing life resulting in higher productivity
• Reduced leakage, oil consumption and contamination ingress helping to reduce maintenance, extend gearbox reliability and higher productivity
• Helps extend lubricant life with lower lubricant and lubrication costs and reduced scheduled downtime
• Cleaner systems and reduced maintenance
• Fewer grades of lubricant required because of wide range of application, leading to lower purchase and storage costs and less danger of using wrong lubricant

Technical specifications

Manufacture number	149635
Grade	ISO 100
Copper Strip Corrosion, 24 h, 121 C, Rating, ASTM D130	1B
Density @ 60 F, g/cm3, ASTM D4052	0.88
Kinematic Viscosity @ 100 C, mm2/s, ASTM D445	11.2
Kinematic Viscosity @ 40 C, mm2/s, ASTM D445	100
Pour Point, °C, ASTM D5950	-24
Rust Characteristics, Procedure B, ASTM D665	PASS
Viscosity Index, ASTM D2270	97

Product Description Mobilgear 600 XP Series

ExxonMobil Mobilgear 600 XP Series is designed to stay ahead of the changing needs of gearbox technology. Gearbox technology design trends are towards smaller units with similar power throughput. This increase in power density places increased demands on gear oils. Mobilgear 600 XP Series oils are formulated to meet the stress by providing extra protection for gears, bearings and seals.

Mobilgear 600 XP Series is formulated to protect gear teeth from wear at its earliest stages. Microscopic wear, called micropitting, can lead to significant gear tooth damage. Mobilgear 600 XP Series exceeds the industry requirement for bearing wear protection. In fact, Mobilgear 600 XP Series provides up to 15 times the wear protection as measured by the industry standard FAG FE 8 test. Mobilgear 600 XP Series’ balanced formulation is able to provide maximum wear and corrosion protection while maintaining compatibility with common gearbox seal materials. Mobilgear 600 XP helps to maintain gearbox seal integrity thereby preventing oil leaks and keeping contamination out. By protecting the gears, bearings and seals, Mobilgear 600 XP can improve equipment reliability and increase productivity.

Mobilgear 600 XP Series oils are recommended for industrial spur, helical and bevel enclosed gears with circulation or splash lubrication, operating at bulk oil temperatures up to 100ºC. They are particularly suitable for gear sets working under heavy or shock loads. Mobilgear 600 XP oils also find broad application in marine gearing applications. They may also be used in non-gear applications include highly loaded and slow speed plain and rolling contact bearings.



Information on product safety (Manufacturer, Contact)

EXXONMOBIL CENTRAL EUROPE HOLDING GMBH, Ericusspitze 2, 20457 Hamburg, GERMANY, +49 40 6393 0, [email protected], www.exxonmobil.de
