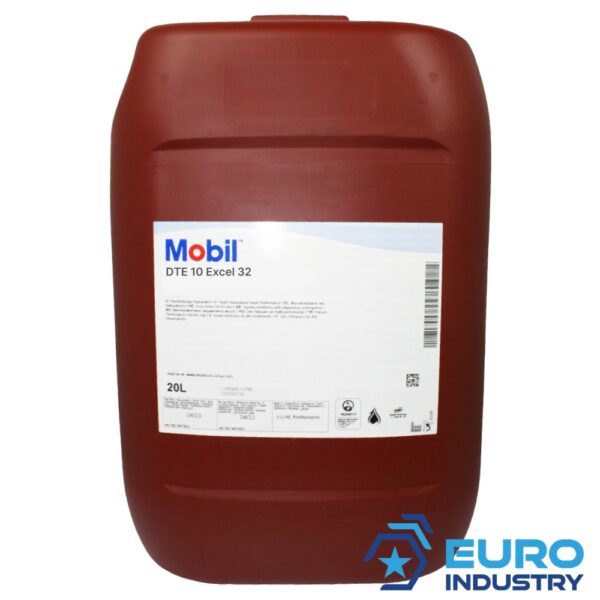

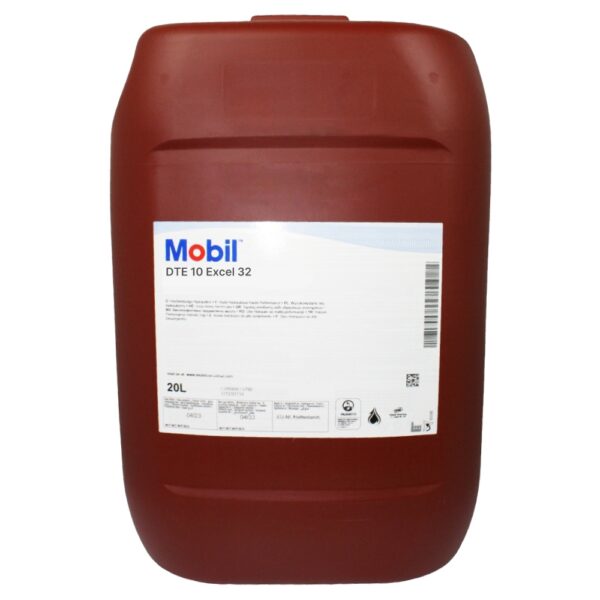

Mobil DTE 10 Excel 32 Anti-wear hydraulic oil HVLP 20L canister

Mobil DTE 10 Excel™ 32 high performance anti-wear hydraulic oils (HVLP, ISO VG 32) are specifically designed to meet the needs of modern, high pressure, industrial and mobile equipment hydraulic systems.

Applications

• Industrial and mobile equipment hydraulic systems operating at high pressures and temperatures in critical applications
• Hydraulic systems subject to deposit build-up such as sophisticated Computer Numerically Controlled (CNC) machines, particularly where close clearance servo-valves are used
• Systems where cold start-up and high operating temperatures are typical
• Systems requiring a high degree of load-carrying capability and anti-wear protection
• Machines employing a wide range of components using various metallurgy

Specifications and Approvals

• DIN 51524-2:2017-06
• DIN 51524-3:2017-06
• ISO L-HM (ISO 11158:2009)
• ISO L-HV (ISO 11158:2009)
• Denison HF-0
• Denison HF-1
• Denison HF-2
• Eaton E-FDGN-TB002-E
• HOCNF Norway-NEMS, Black
• Krauss-Maffei Hydraulic Oil
• Ortlingshaus-Werke GmbH ON 9.2.10
• Ortlingshaus-Werke GmbH ON 9.2.19
• ZF TE-ML 04K
• ZF TE-ML 04R
• Fives Cincinnati P-68
• Valmet Paper RAUAH00929_04(hydraulic systems)
• ASTM D6158 (Class HVHP)
• China GB 11118.1-2011, L-HM(General)
• China GB 11118.1-2011, L-HM(HP)
• China GB 11118.1-2011, L-HV
• JCMAS HK VG32W

Features

• Excellent Hydraulic Efficiency
• Ultra Keep Clean Performance
• Shear Stable, High Viscosity Index
• Oxidation and Thermal Stability
• Good compatibility with elastomers and seals
• Anti-wear properties
• Excellent Air Separation Characteristics
• Multi metal compatibility

Advantages and Potential Benefits

• Potentially reduced energy consumption or increased system responsiveness
• Reduced system deposits leading to reduced machine maintenance and increased component life
• Sustained component protection over a wide temperature
• Extends fluid life even under harsh operating conditions
• Long seal life and reduced maintenance
• Helps reduce wear and protects pumps and components for extended equipment life
• Helps prevent aeration and cavitation damage in low residence time systems
• Helps ensure excellent performance and protection with a wide variety of component metallurgy

Technical specifications

Manufacture number	156609
Grade	ISO 32
Brookfield Viscosity @ -40 C, mPa.s, ASTM D2983	20000
Copper Strip Corrosion, 3 h, 100 C, Rating, ASTM D130	1B
Density @ 15 C, kg/l, ASTM D4052	0.845
Dielectric Strength, kV, ASTM D877	39.3
Flash Point, Cleveland Open Cup, °C, ASTM D92	225
Kinematic Viscosity @ 100 C, mm2/s, ASTM D445	6.5
Kinematic Viscosity @ 40 C, mm2/s, ASTM D445	31.5
Pour Point, °C, ASTM D97	-48
Viscosity Index, ASTM D2270	164

Product description Mobil DTE 10 Excel™ Series

The Mobil DTE 10 Excel Series is constructed from selected base oils and a proprietary additive package to provide well balanced performance in a range of applications. The products demonstrate outstanding oxidation and thermal stability allowing for long oil life and minimized deposit formation in severe  hydraulic systems using high pressure, high output pumps. The innovative ultra keep-clean performance protects critical hydraulic system components from malfunction, such as tight tolerance servo and proportional valves found in many modern hydraulic systems. The shear stable, high viscosity index allows for a wide range of operating temperatures maintaining maximum hydraulic efficiency and utmost component protection at both low and high temperatures. Outstanding air release properties represent an added measure of protection in systems with low residence time helping to prevent cavitation damage and micro dieseling. The zinc free anti-wear system provides a high degree of protection in gear, vane and piston pumps while also minimizing deposit formation. In addition, Mobil DTE 10 Excel is not acutely or chronically toxic to the aquatic environment (per GHS criteria and OECD testing).

Formulated with extensive laboratory and in-service field testing, Mobil DTE 10 Excel series can help provide quantifiable increases in hydraulic efficiency compared to other Mobil™ hydraulic oils. This can translate to reduced power consumption or increased machine output, resulting in monetary savings.

In controlled laboratory efficiency testing, Mobil DTE 10 Excel series were measured to provide up to a six percent improvement in hydraulic pump efficiency compared to Mobil standard hydraulic fluids when operating in standard hydraulic applications.

In additional laboratory and in-service field demonstrations conducted on a wide range of modern hydraulic systems, Mobil DTE 10 Excel series demonstrated, compared to Mobil standard hydraulic fluids, exceptional oil life, outlasting these fluids by up to three times, while maintaining outstanding hydraulic system cleanliness and component protection. Mobil DTE 10 Excel also demonstrated the value of its high viscosity index and outstanding shear stability by operating successfully in temperatures as low as -34°C and by maintaining ISO viscosity grade.




Information on product safety (Manufacturer, Contact)

EXXONMOBIL CENTRAL EUROPE HOLDING GMBH, Ericusspitze 2, 20457 Hamburg, GERMANY, +49 40 6393 0, [email protected], www.exxonmobil.de
