Loctite 98548 Benchtop peristaltic dispenser
€ 3598,80
- Description
- FAQ
- Additional information
- Reviews (10)
Description

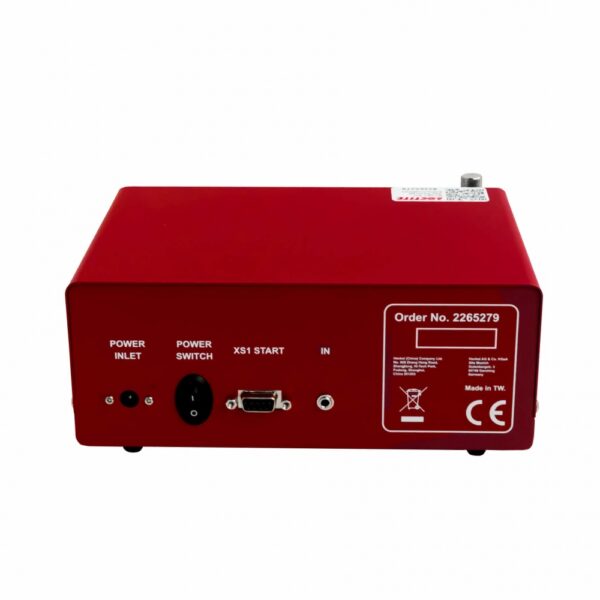

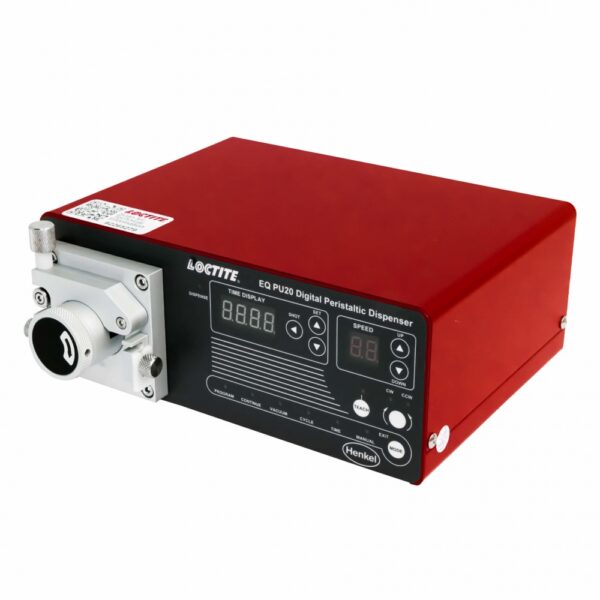

LOCTITE® 98548 Benchtop peristaltic dispenser
- The peristaltic motion of the rotor provides volumetric dispensing of the material directly from a bottle or similar container.
- The unit is designed mainly for manual work stations but can also be integrated into automatic production lines.
- A precise amount of product can be set and high repetition accuracy is ensured.
- Four feedline size options are available.
- The Peristaltic Dispenser is ideal for dispensing directly from 10ml anaerobic and 20G cyanoacrylate bottles and can also be used for larger size bottles.
Characteristics
- Precise, controlled application of adhesive
- Simple and convenient load mechanism provides for easy cleaning
- Includes four different feed line tubing sizes to accommodate various product viscosities
- Continuous or timed mode of dispense
- No decanting of adhesive required – just place the feedline into the original bottle
- Does not require the use of an air source
- Provides precise volumetric dispensing of 1-part cyanoacrylates, UV and anaerobic adhesives, solvent-free activators and oils (up to a viscosity of approx. 5,000 mPa·s
Technical specifications
- Power supply: 110/220 VAC; 50/60 Hz.
- Power consumption: 0.3 amps
- Dispense time range: 0.01 –99.9 seconds
- Rotor speed: Up to 120 rpm
- Maximum flow rate: up to 6 ml. per minute
- Minimum drop size: 0.001 ml.
- Direction of rotation: clockwise (CW) or counterclockwise (CCW)
- Dimensions (W x H x D): 192 x 210 x 90 mm
Henkel AG & Co. KGaA, Henkelstr. 67, 40589 Düsseldorf, GERMANY, +49 211 7970, [email protected], www.henkel.com
