Klübertemp YV 93-302 Sliding agent for valves, fittings 1kg tin
€ 1031,94
- Description
- FAQ
- Additional information
- Reviews (14)
Description
Klübertemp YV 93-302 Sliding agent for valves, fittings and installations carrying oxygen up to medium partial pressure | N° 013063
- Klübertemp YV 93-302 is a white sliding agent with good wetting ability based on perfluorinated polyether, solid lubricants and PTFE.
- It offers medium oxygen pressure surge resistance and high resistance to a wide range of chemicals. To ensure continuous adherence to this high quality standard, Klübertemp YV 93-302 is manufactured in small series subject to strict hygiene requirements and each batch is inspected based on M 034-1 list of nonmetallic materials (213-075).

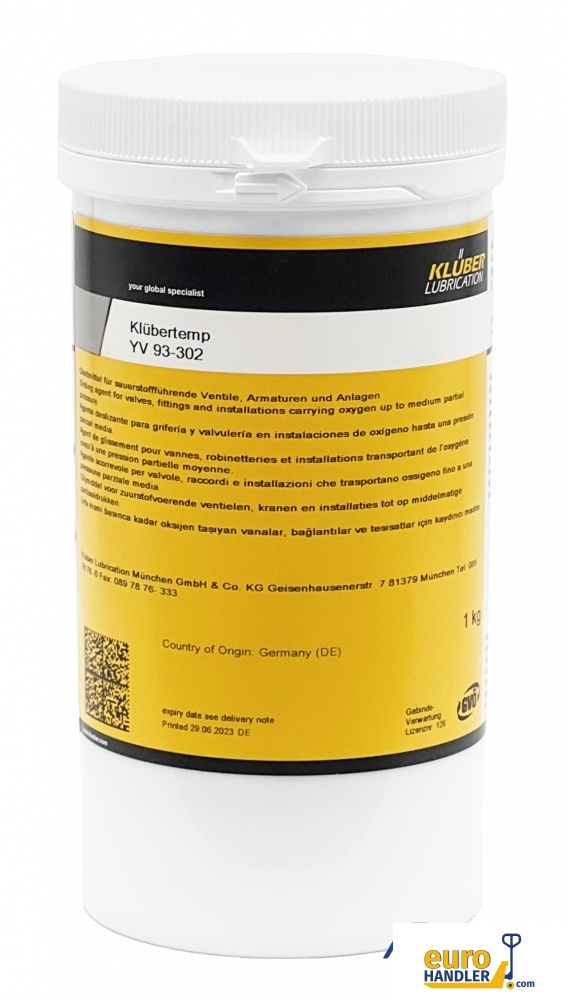

- Volume: 1 kg can
Benefits for your application
- High operational reliability for installations and components used with gaseous oxygen due to
- medium oxygen pressure surge resistance (see product data)
- compatibility with most materials used in this industry
- a wide service temperature range
- Each product batch is checked for its reactivity to oxygen
Applications
- Klübertemp YV 93-302 is a tried-and-tested sliding agent for all friction points with low to medium requirements and in combination with all materials used in gaseous oxygen installations.
- Possible applications are:
- Oxygen valves
- Peripheral aggregates of chemical installations
- Hose couplings, e.g. oxygen pipe connections, sliding and plain bearings, bolts, slideways, etc.
- Steel and heavy industry
- Assembly aid for most rubber-elastic materials and plastics
- For the industrial handling, maintenance and care of oxygen components
Application notes
- All surfaces to be wetted must be thoroughly cleaned prior to product application.
- The friction / lubrication points of surfaces / components must be clean and bright (i.e. free from oil, grease, dirt particles or perspiration). We recommend cleaning the surfaces with clean white spirit and then Klüberalfa XZ 3-1, ensuring residue-free surfaces when dried. For valves and installations carrying oxygen, the application procedure must also be “oxygen clean” in order to attain a “ready for oxygen service” condition.
Technical specifications
| Chemical composition, type of oil | PFPE |
| Colour space | white |
| Worked penetration, DIN ISO 2137, 25 °C, lower limit value | 265 x 0.1 mm |
| Texture | homogeneous |
| Worked penetration, DIN ISO 2137, 25 °C, upper limit value | 295 x 0.1 mm |
| Chemical composition | solid lubricant |
| Density at 20 °C | ca. 2,00 g/cm³ |
| Shear viscosity at 25 °C, shear rate 300 s-1; equipment:rotational viscometer | ca. 7500 mPas |
| Lower service temperature | -60 °C |
| Upper service temperature | 200 °C |
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
Downloads
Additional information
| Property | – |
|---|
