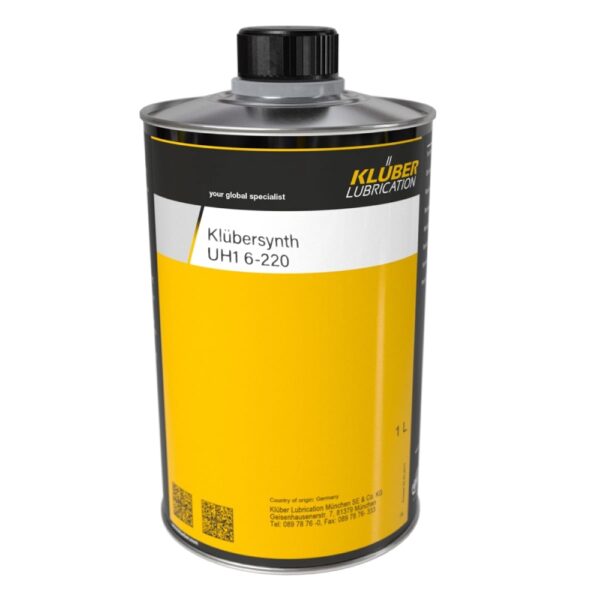

Klübersynth UH1 6-220 Synthetic high-performance gear oil 1l tin
€ 103,98
- Description
- FAQ
- Additional information
- Reviews (11)
Description
Klübersynth UH1 6-220 Synthetic high-performance gear oil | N° 96059
- Klübersynth UH1 6 is a synthetic high-performance gear oil based on polyglycol satisfying the growing requirements and increasing power density of modern gears. Klübersynth UH1 6 includes KlüberComp Lube Technology*, i.e. it is based on especially high-grade raw materials and advanced additives, enabling maximum performance in the lubrication of all gear components
- Klübersynth UH1 6 oils are NSF H1 registered and therefore comply with FDA 21 CFR § 178.3570. The lubricants were developed for incidental contact with products and packaging
materials in the food-processing, cosmetics, pharmaceutical or animal feed industries. The use of Klübersynth UH1 6 oils can contribute to increase reliability of your production processes. We nevertheless recommend conducting an additional risk analysis, e.g. HACCP - Size: 1L
Benefits for your application
- Registered as NSF H1 and certified according to ISO 21469
- High scuffing protection
- Good wear protection for gears and rolling bearings
- High micropitting resistance
- Good shear stability for reliable lubricant film formation
- Optimised for the lubrication of worm gears
- Excellent ageing and oxidation resistance
- Wide service temperature range due to good viscosity-temperature behaviour
- Low foaming tendency
- Energy savings due to optimised friction behaviour
- Good elastomer compatibility
- Approvals by numerous gear OEMs
Application
- Klübersynth UH1 6 oil is used for the lubrication of highly loaded spur, bevel and planetary gears, rolling and plain bearings as well as all types of toothed couplings, especially when exposed to high temperatures
- Klübersynth UH1 6 oil was especially developed for the lubrication of worm gears with steel/bronze pairings
- It can also be used for the lubrication of lifting, drive and transport chains
Technical specifications
| Article number | 96059 |
| Marking acc. to DIN 51502 | CLP PG 220 |
| Classification acc. to ISO 12925-1 | CKC 220 |
| NSF-H1 registration | 124 438 |
| Lower service temperature | -30 °C / -22 °F |
| Upper service temperature | 160 °C / 320 °F |
| Density, based on DIN 51757) at 15 °C | 1 060 kg/m³ |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 20 °C | approx. 610 mm²/s |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C | approx. 220 mm²/s |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C | approx. 41 mm²/s |
| Viscosity index, DIN ISO 2909 | >= 220 |
| ISO viscosity grade, DIN ISO 3448 | 220 |
| Flash point, DIN EN ISO 2592, Cleveland, open-cup apparatus | >= 220 °C |
| Pour point, DIN ISO 3016 | <= -35 °C |
| Foam test, ASTM-D 892, ISO 6247, sequence I/24 °C | <= 100/10 ml |
| Foam test, ASTM-D 892, ISO 6247, sequence II/ 93.5 °C | <= 100/10 ml |
| Foam test, ASTM D 892, ISO 6247, sequence III/24°C | <= 100/10 ml |
| Copper corrosion, DIN EN ISO 2160, 24 h/100°C | 1 – 100 corrosion degree |
| Anticorrosive properties on steel, DIN ISO 7120, method A, steel, 24 h/60 °C | no rust corrosion degree |
| Ageing properties, ASTM D 2893, increase in viscosity | <= 6 % |
| FZG scuffing test, DIN ISO 14635-1, A/8.3/90, scuffing load stage | >= 12 |
| FZG scuffing test, based on DIN ISO 14635-1, A/16.6/90, scuffing load stage | >= 12 |
| FAG FE8 rolling bearing test, DIN 51819-3, D 7,5/80-80, wear of cage | <= 200 mg |
| FAG FE8 rolling bearing test, DIN 51819-3, D 7,5/80-80, wear of rolling element | <= 30 mg |
| Minimum shelf life from the date of manufacture – in a dry, frost-free place and in the unopened original container, approx. | 36 months |
Hazard Information (CLP)
Signal word: Danger.
Hazard statements (H-phrases)
- H411: Toxic to aquatic life with long lasting effects.
Precautionary statements (P-phrases)
Prevention:
- P273: Avoid release to the environment.
Response:
- P391: Collect spillage.
Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
