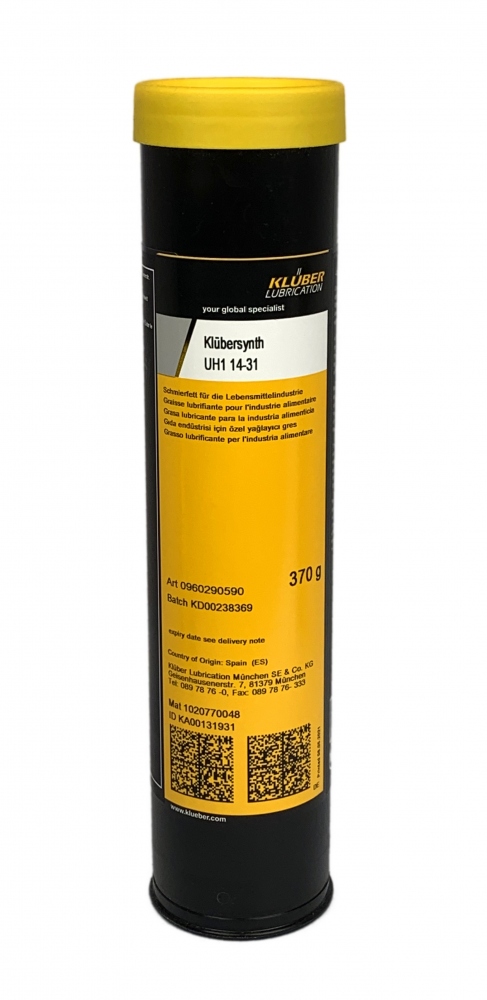

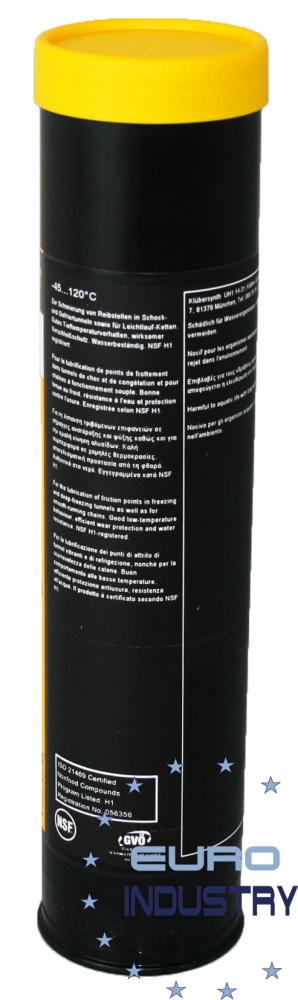

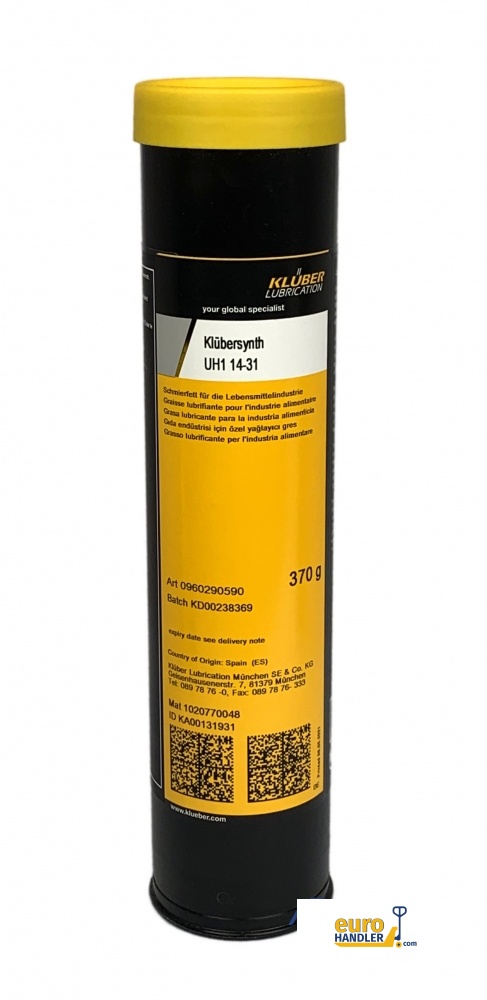

Klübersynth UH1 14-31 Lubricating grease for food industry 370g

Synthetic smooth-running grease for the food-processing and pharmaceutical industries.

Klübersynth UH1 14-31 was especially developed for the foodprocessing and pharmaceutical industries. This lubricant is NSF H1-registered and therefore  complies with FDA 21 CFR § 178.3570.
The use of Klübersynth UH1 14-31, an NSF H1-registered lubricant, is a contributor towards the supporting of food safety. This needs to be considered not in isolation but in line with other appropriate actions which have by law to be fulfilled by a food manufacturing plant to allow for food to be manufactured safely.
Klübersynth UH1 14-31 excels by its low-temperature and antiwear properties as well as good water resistance and effective wear- and corrosion protection.

Benefits for your application:

• Reliable operation also at low temperatures due to soft consistency and low base oil viscosity
• Reduced risk of premature component failure due to good adhesion and anticorrosive behaviour
• Lubricant starvation prevented by very good pumpability in centralised lubricating systems
• NSF-H1 registration for higher process reliability

Application:
Klübersynth UH1 14-31 is used on machines and equipment in the food-processing and pharmaceutical industries, preferably at lubrication points where  technically unavoidable contact with the food product cannot be excluded. However, we recommend supplying all lubrication points in the area with Klübersynth UH1 14-31 so as to avoid problems of lubricant contamination.
Klübersynth UH1 14-31 should preferably be used when extremely smooth running and a wide speed range are required.
It is intended for plain- and rolling bearings, lifting cylinders, joints, seals, etc. as well as for the lubrication of friction points in freeze and deep-freeze tunnels or for chains which run more smoothly when lubricated with a soft grease.

Application notes:
Klübersynth UH1 14-31 can be applied by brush, spatula, grease gun or automatic lubricating systems.
Service temperatures of Klübersynth UH1 14-31 range from -45 °C to 120 °C. For certain applications, lower temperatures are also possible. The lubricating film retains its functionality down to approx. -70 °C.

Product data:

NLGI grade, DIN 51818	1
NSF-H1 registration	056356
Lower service temperature	-45 °C / -49 °F
Upper service temperature	120 °C / 248 °F
Texture	short-fibred
Color space	white
Texture	homogeneous
Density at 20 °C	approx. 0.90 g/cm³
Worked penetration, DIN ISO 2137, 25 °C, lower limit value	310 x 0.1 mm
Worked penetration, DIN ISO 2137, 25 °C, upper limit value	340 x 0.1 mm
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C	approx. 30 mm²/s
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C	approx. 6 mm²/s
Speed factor (n x dm)	approx. 700 000 mm/min
Drop point, DIN ISO 2176, IP 396	>= 220 °C
Functional lubricant film	>= -70°C °C
Flow pressure of lubricating greases, DIN 51805, test temperature:-45 °C	<= 1 400 mbar
Minimum shelf life from the date of manufacture – in a dry, frost-free place and in the unopened  original container, approx.	24 months



Information on product safety (Manufacturer, Contact)

KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
