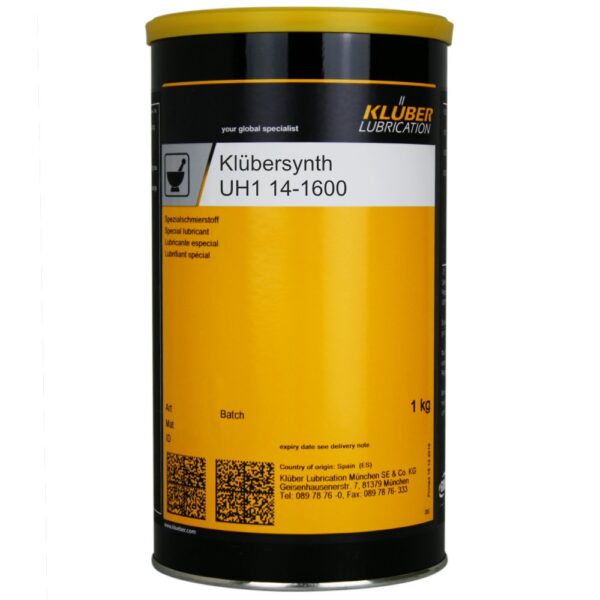

Klübersynth UH1 14-1600 Synthetic lubricating grease 1kg
€ 112,74
- Description
- FAQ
- Additional information
- Reviews (11)
Description
Synthetic grease for valves and fittings in the food-processing and pharmaceutical industries
- Klübersynth UH1 14-1600 is a synthetic high-performance lubricating grease. It is registered as NSF H1 and complies with FDA 21 CFR Sec. 178.3570. Klübersynth UH1 14-1600, an NSF H1-registered lubricant, is a contributor towards the supporting of food safety. The use of this lubricant needs to be
considered not in isolation but in line with other appropriate actions which have by law to be fulfilled by a food manufacturing plant to allow for food to be manufactured safely. Its soft consistency, good wear protection and scuffing load stage 11 in the FZG test ensure good lubricant distribution and reduced wear in the gear. - Size: 1kg can
- Available in 370g cartridge, 1kg can, 170kg drum
Benefits:
- Improved pumpability due to its soft consistency
- Component life enhanced resulting from a special thickener with good adhesion and good corrosion protection
- ISO 21469 certified – supports the compliance with the hygienic requirements in your production. You will find further information about ISO Standard 21469 on our website www.klueber.com.
Application:
- Klübersynth UH1 14-1600 has been especially designed for applications in machines and installations used in the food processing and pharmaceutical industries where contact with the food product is technically unavoidable. It is intended for use as a fluid gear grease for the immersion lubrication of toothed gears, worm gears and chains operating more smoothly with a softer grease.
Application notes:
- Klübersynth UH1 14-1600 is applied by brush, spatula, grease gun or via central lubrication systems. Before substituting Klübersynth UH1 14-1600 for other greases, thoroughly clean all lubrication/friction points. If the greases are miscible, relubrication is sufficient. In gears, however, used grease should be removed as far as possible.
- The product can normally be applied by means of centralised lubricating systems. Please note, however, that due to different system configurations and application conditions the pumpability of the product has to be confirmed with the system manufacturer for each individual application. We will be pleased to provide assistance in this matter.
- A special feature of this product is the very fast increase of worked penetration. It quickly becomes very soft (approx. 6 months) thus falling beyond the indicated worked penetration range.
Product data:
| Article number | 96038 |
| NLGI grade, DIN 51818 | 0/00 |
| NSF-H1 registration | 136 695 |
| Chemical composition, type of oil | synthetic hydrocarbon oil |
| Chemical composition, thickener | aluminium complex soap |
| Lower service temperature | -45 °C / -49 °F |
| Upper service temperature | 120 °C / 248 °F |
| Colour space | yellow |
| Texture | fibrous |
| Texture | homogeneous |
| Density at 20 °C | approx. 0,85 g/cm³ |
| Worked penetration, DIN ISO 2137, 25 °C, lower limit value | 370 x 0,1 mm |
| Worked penetration, DIN ISO 2137, 25 °C, upper limit value | 430 x 0,1 mm |
| Drop point, DIN ISO 2176, IP 396 | >= 200 °C |
| FZG scuffing test, based on DIN ISO 14635, A/2,76/50, scuffing load stage | 11 |
| Minimum shelf life from the date of manufacture – in a dry, frost-free place and in the unopened original container, approx. | 12 months |
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
