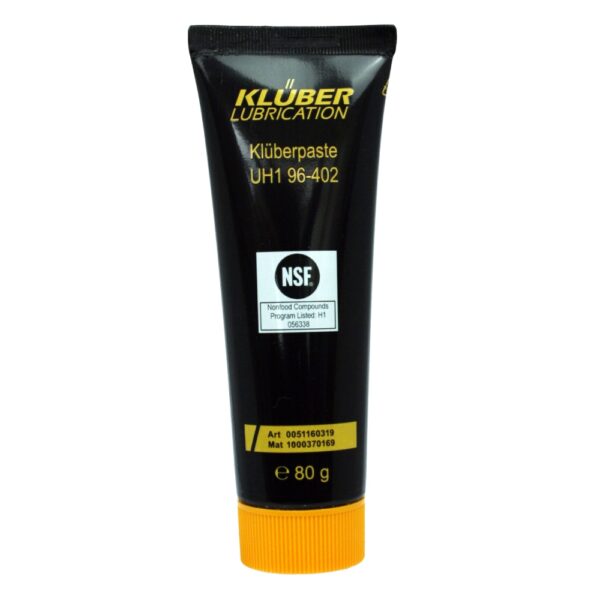

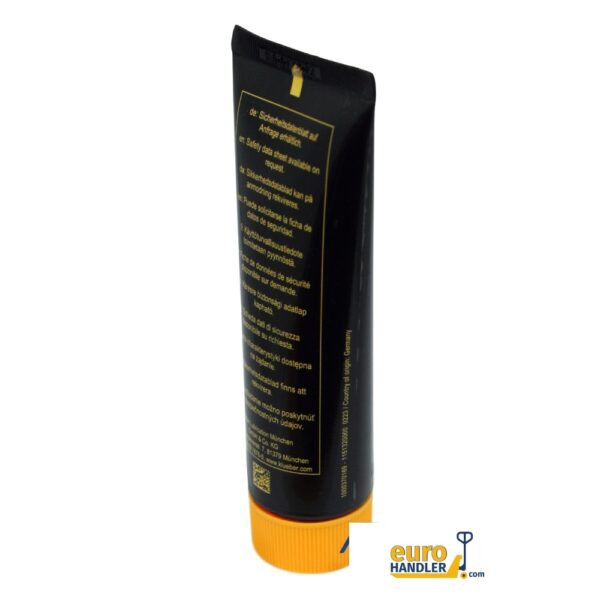

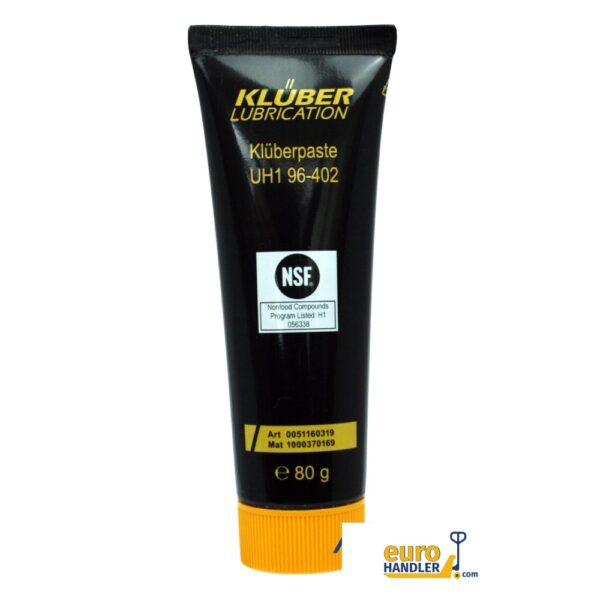

Klüberpaste UH1 96-402 High-temp paste for food-processing 80g tube
€ 45,00
- Description
- FAQ
- Additional information
- Reviews (9)
Description
Klüberpaste UH1 96-402 Light-coloured high-temperature paste for the food-processing and pharmaceutical industries | N° 005116
- Klüberpaste UH1 96-402 is a high-temperature paste designed for versatile assembly purposes in hygienically sensitive environments. It contains fully synthetic base oils and a special blend of ceramic solid lubricants.
- Across the “normal” temperature range up to approx. 160 °C, Klüberpaste UH1 96-402 is a water-resistant lubricating and assembly paste providing good adhesion on metals.
- Under permanently higher temperatures up to 1200 °C, its solid lubricating particles provide protection against tribocorrosion or fretting corrosion.
- Temperature range: -30°C to +1200°C
- Volume: 80g tube
- Also available in: 600g cartridge, 750g can, 30kg pail
Benefits for your application
- Reliable dry lubrication at temperatures from 200 °C to 1200 °C
- Good adhesion to the friction point, also when subject to humidity
- ISO 21469 certified – supports the compliance with the hygienic requirements in your production. You will find further information about ISO Standard 21469 on our website www.klueber.com
Applications
- Klüberpaste UH1 96-402 is suitable for a variety of friction points in food-processing and pharmaceutical machines which are subject to high loads –
- as an assembly paste for transition and loose fits to prevent fretting corrosion
- as a paste for screw connections based on high-alloy steels to optimise the tightening torque and demounting, even after long operating periods
- as a long-term lubricant for low-speed guide rails, hinges, rollers, etc.
Application notes
- Before applying KlüberpasteUH1 96-402 it is important to clean and degrease the contact surfaces thoroughly. A thin layer of the paste is then applied by brush, leather cloth or synthetic sponge.
- Klüberpaste UH1 96-402 spreads easily over the entire surface, facilitating easy processing. We recommend carrying out compatibility tests before applying the paste to plastic materials. Equipment manufacturers and operators should therefore conduct risk analyses prior to such applications. Measures to exclude health or injury risks are to be undertaken if necessary.
Technical specifications
| Lower service temperature | -30 °C / -22 °F |
| Upper service temperature | 1200 °C / 2192 °F |
| NLGI grade, DIN 51818 | 2 |
| Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C | approx. 360 mm²/s |
| Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C | approx. 57 mm²/s |
| Four-ball tester, welding load, DIN 51350 pt. 04 | >= 2 600 N |
| Water resistance, DIN 51807 pt. 01, 3 h/90 °C, rating | <= 1 – 90 |
| Minimum shelf life from the date of manufacture – in a dry, frost-free place and in the unopened original container, approx. |
24 months |
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
