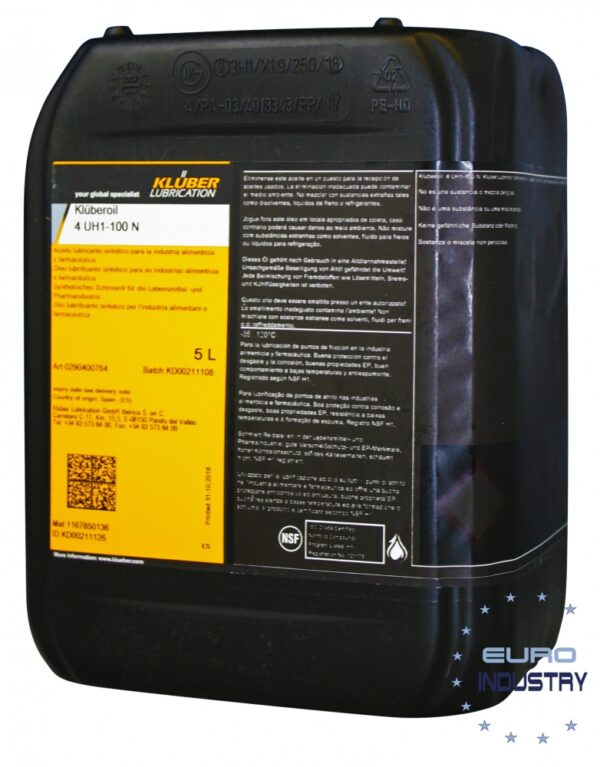

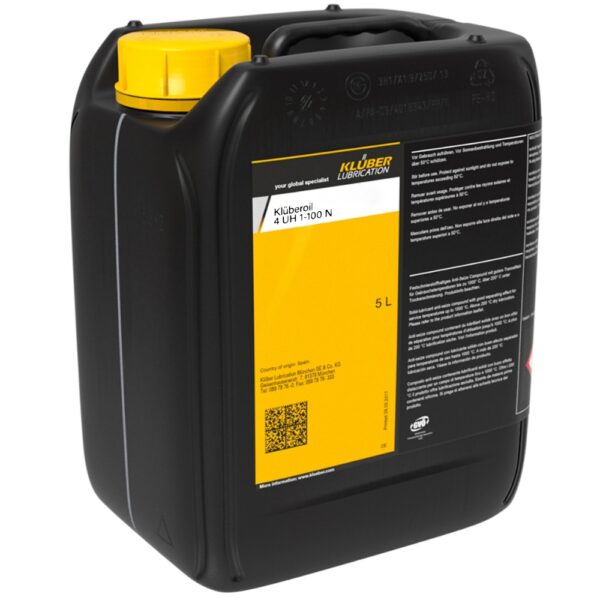

Klüberoil 4 UH1-100 N Synthetic gear and multi-purpose oil 5l
€ 383,94
- Description
- FAQ
- Additional information
- Reviews (7)
Description
Klüberoil 4 UH1-100 N Synthetic gear and multipurpose oil for the food-processing and pharmaceutical industries | N° 029040
- A synthetic high-performance gear and multipurpose oil based on polyalphaolefin satisfying the growing requirements and increasing power density of modern gears.
- Based on high-grade raw materials and advanced additives, enabling maximum performance in the lubrication of all gear components.
- Volume: 5L
Benefits for your application
- Registered as NSF H1 and certified according to ISO 21469
- High scuffing protection
- Good wear protection for gears and rolling bearings
- Good shear stability for reliable lubricant film formation
- Excellent ageing and oxidation resistance
- Wide service temperature range due to good viscosity-temperature behaviour
- Low foaming tendency
- Energy savings due to optimised friction behaviour
- Good elastomer compatibility
- Approved by numerous gear OEMs
Application
- Klüberoil 4 UH1 N was developed for the lubrication of spur, bevel and worm gears subject to high loads, bearings, spindles, joints as well as lifting, drive and transport chains.
- Klüberoil 4 UH1 N is registered as NSF H1 for use in the food-processing and pharmaceutical industries and complies with FDA 21 CFR Sec 178.3570.
- It was developed for incidental contact with products and packaging materials in the food-processing, cosmetics, pharmaceutical or animal feed industries.
Application notes
- Klüberoil 4 UH1 N can be used for immersion, immersion circulation and injection lubrication.
- The use of drip-feed oilers, brushes, oil cans or suitable automatic lubricating systems is also possible.
- When using automatic lubricating systems, please note the manufacturer’s instructions regarding the maximum permissible viscosity.
- The low-viscosity varieties are also used for oil mist lubrication.
Technical specifications
| NSF-H1 registration | 121 173 |
| Upper service temperature | 120 °C / 248 °F |
| Density, based on DIN 51757) at 15 °C | approx. 855 kg/m³ |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C | approx. 100 mm²/s |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C | approx. 14 mm²/s |
| ISO viscosity grade, DIN ISO 3448 | 100 |
| Viscosity index, DIN ISO 2909 | >= 140 |
| Foam test, ASTM-D 892, ISO 6247, sequence I/24 °C | <= 100/10 ml |
| Foam test, ASTM-D 892, ISO 6247, sequence II/ 93.5 °C | <= 100/10 ml |
| Foam test, ASTM D 892, ISO 6247, sequence III/24°C | <= 100/10 ml |
| Flash point, DIN EN ISO 2592, Cleveland, open-cup apparatus | >= 200 °C |
| Pour point, DIN ISO 3016 | <= -36 °C |
| Ageing properties, ASTM D 2893, increase in viscosity | <= 6 % |
| Copper corrosion, DIN EN ISO 2160, 24 h/100°C | 1 – 100 corrosion degree |
| Anticorrosive properties on steel, DIN ISO 7120, method A, steel, 24 h/60 °C | no rust corrosion degree |
| FZG scuffing test, DIN ISO 14635-1, A/8.3/90, scuffing load stage | >= 12 |
| FAG FE8 rolling bearing test, DIN 51819-3, D 7,5/80-80, wear of rolling element | <= 30 mg |
| FAG FE8 rolling bearing test, DIN 51819-3, D 7,5/80-80, wear of cage | <= 200 mg |
| Minimum shelf life from the date of manufacture – in a dry, frost-free place and in the unopened original container, approx. |
24 months |
Hazard Information (CLP)
Signal word: Danger.
Hazard Statements (H-phrases)
- H411: Toxic to aquatic life with long lasting effects.
Precautionary Statements (P-phrases)
Prevention:
- P273: Avoid release to the environment.
Response:
- P391: Collect spillage.
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
