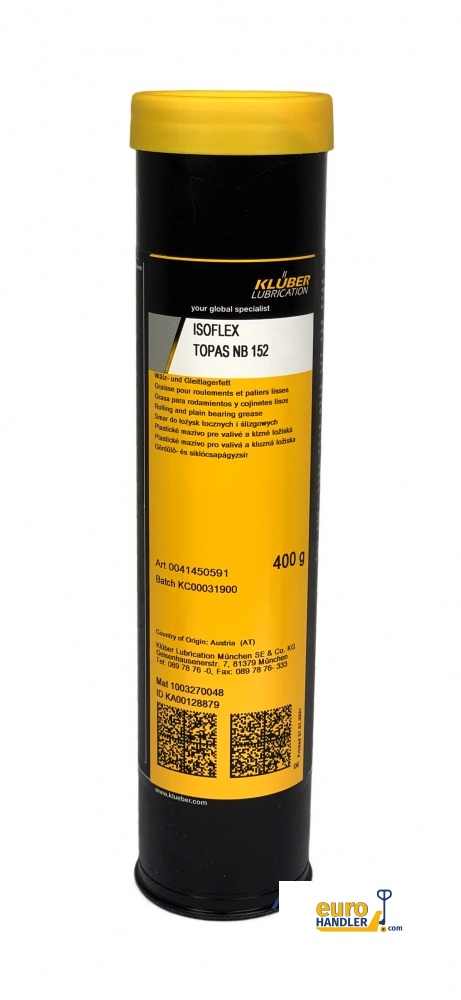

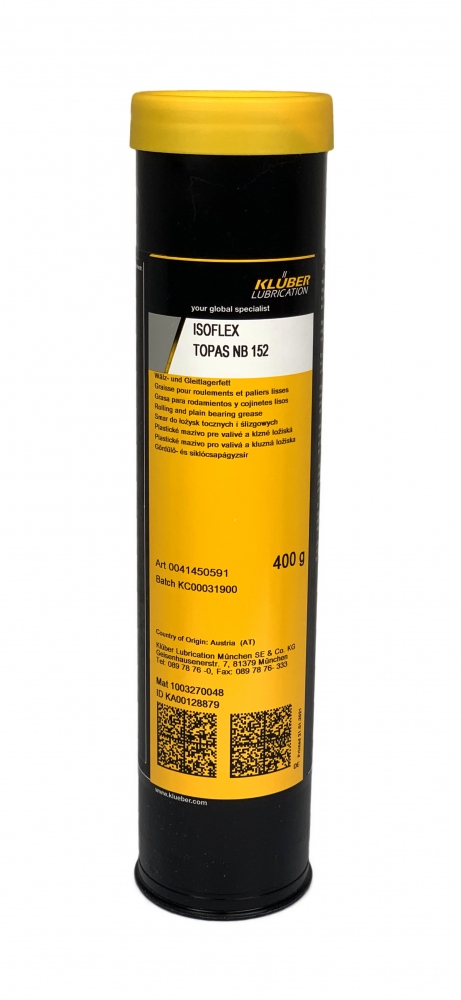

Klüber Topas NB 152 Synthetic rolling and plain bearing grease 400g

ISOFLEX TOPAS NB 52 and ISOFLEX TOPAS NB 152 are rolling and plain bearing greases based on a synthetic hydrocarbon oil and a barium complex soap. The special barium-soap thickener used in the ISOFLEX TOPAS NB 52 and 152 greases offers good load-carrying capacity as well as resistance to water and ambient media unlike other soap-based thickeners. Both products show good protection against corrosion as well as oxidation and ageing stability. The Klüber barium complex soap is ELINCS-registered and approved by GASG (Global Automotive Stakeholders Group).

ISOFLEX TOPAS NB52 is suitable for temperatures between -50 °C to 120 °C and short peak temperatures up to 150 °C depending on the application, e.g. enclosed gears, car seat adjustment mechanisms.

Benefits for your application:

• Longer component life when exposed to water or aqueous media due to special thickener
• Many years of successful use in the automotive and machine building industries

Application:
ISOFLEX TOPAS NB 52 is a versatile grease for many applications, e.g.

• Rolling and plain bearings subject to high speeds and loads, also for low temperatures,
• Tooth flanks in precision gears, e.g. bevel gears in milling machines, electromechanical actuators for valves,
• Electric contacts and components to reduce insertion forces.

Application notes:
The greases are applied by spatula, brush, grease gun or cartridge. Sprays should not be exposed to direct sunlight and temperatures above 50 °C.

Product data:

Lower service temperature	-50 °C / -58 °F
Upper service temperature	120 °C / 248 °F
Color space	beige
Texture	homogeneous
Texture	short-fibred
Density at 20 °C	approx. 0.96 g/cm³
Worked penetration, DIN ISO 2137, 25 °C, lower limit value	265 x 0.1 mm
Worked penetration, DIN ISO 2137, 25 °C, upper limit value	295 x 0.1 mm
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C	approx. 30 mm²/s
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C	approx. 5.9 mm²/s
Shear viscosity at 25 °C, shear rate 300 s-1, equipment: rotational viscometer, lower limit value	4 000 mPas
Shear viscosity at 25°C, shear rate 300 s-1, equipment:rotational viscometer, upper limit value	8 000 mPas
Corrosion inhibiting properties of lubricating greases, DIN51802, (SKF-EMCOR),  test duration: 1 week, distilled water	0 corrosion degree
Copper corrosion, DIN 51811, (lubricating grease), 24h/100°C	1 – 100 corrosion degree
Oil separation, ASTM D 6184 [FTMS 791 C 321], after 30h/100 °C	<= 3 % by weight
Drop point, DIN ISO 2176	>= 240 °C
Oxidation stability of lubricating greases, ASTM D942, 100 h/99 °C, pressure drop	<= 0.3 bar
Speed factor (n x dm)	approx. 1 000 000 mm/min
Water resistance, DIN 51807 pt. 01, 3 h/90 °C, rating	<= 1 – 90
Minimum shelf life from the date of manufacture – in a dry, frostfree place and in the  unopened original container, approx.	36 months



Information on product safety (Manufacturer, Contact)

KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
