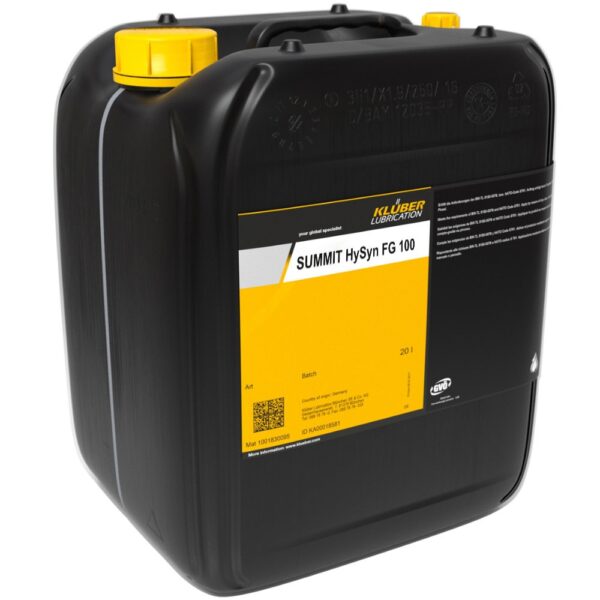

Klüber Summit HySyn FG 100 Synthetic food machinery compressor oil 20L
€ 895,14
- Description
- FAQ
- Additional information
- Reviews (15)
Description
Fully synthetic compressor oils for the food-processing and pharmaceutical
industry
- Klüber Summit HySyn FG oils are air compressor oils based on synthetic hydrocarbon oils. They can be mixed with mineral oils and other synthetic hydrocarbon oils
- Klüber Summit HySyn FG oils offer good oxidation stability due to the synthetic base oil, thus minimizing oxidation residues in the compressors and extending oil change intervals and the service life of oil filters and separators
- Klüber Summit HySyn FG oils are NSF H1 registered and therefore comply with FDA 21 CFR § 178.3570. The lubricants were developed for incidental contact with products and
packaging materials in the food-processing, cosmetics, pharmaceutical or animal feed industries. The use of Klüber Summit HySyn FG oils can contribute to increase reliability of
your production processes. We nevertheless recommend conducting an additional risk analysis, e.g. HACCP - Content: 20l canister
- Available in 20l canister, 200l barrel
Benefits for your application
- Klüber Summit HySyn FG oils are NSF H1 registered for use in the food-processing and pharmaceutical industry and comply with FDA 21 CFR Sec 178.3570
- ISO 21469 certified – supports compliance with the hygienic requirements of your production. You will find further information about ISO Standard 21469 on our website www.klueber.com
- Low maintenance and operating costs due to extended oil change intervals up to 4,000 operating hours in oilinjected screw-type compressors
- Easy compressor conversion from mineral to the synthetic Klüber Summit HySyn FG oils due to miscibility and compatibility with common seal materials
- Low tendency to evaporation and thus low impact of the oil vapour on the compressed air
- Long service of oils filters, activated carbon filters and oil separators
- Also suitable for the lubrication of gears due to the high scuffing load capacity
- Used and approved by Aerzener, Air Liquide, Boge, CompAir, Worthington, Getriebebau Nord, Lenze etc.
Application
- Klüber Summit HySyn oils can be used for oil-injected screwtype compressors, reciprocating piston compressors and centrifugal compressors
- Klüber Summit HySyn FG oils are intended for use in compressors of the food-processing and pharmaceutical industry requiring oil-free compressed air (without oil vapour
which cannot be removed by the oil separator) - Klüber Summit HySyn FG oils can also be used for the lubrication of gears in oil-free screw-type compressors
- Owing to their good stability, these oils are also suitable for lowtemperature applications in industrial gears. Furthermore, Klüber Summit HySyn FG 32-46-68 oils are used in chains,
particularly those operating at low temperatures, e.g. in freezing tunnels
Technical specifications
| Article number | 50016 |
| NSF-H1 registration | 129 191 |
| Lower service temperature | -35 °C |
| Upper service temperature | 135 °C |
| Density, DIN 51757, 20 °C | approx. 0,84 g/cm³ |
| Foam test, ASTM-D 892, ISO 6247, sequence I/24 °C | <= 150/10 ml |
| Foam test, ASTM-D 892, ISO 6247, sequence II/ 93.5 °C | <= 75/10 ml |
| Foam test, ASTM D 892, ISO 6247, sequence III/24°C | <= 150/10 ml |
| Demulsifying capacity, DIN 51599, ASTM D 1401, at 54 °C | 40/37/3 ml |
| Flash point, DIN EN ISO 2592, Cleveland, open-cup apparatus | >= 240 °C |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C | approx. 100 mm²/s |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C | approx. 13.8 mm²/s |
| Viscosity index, DIN ISO 2909 | >= 120 |
| Copper corrosion, DIN EN ISO 2160, 24 h/100°C | 1 – 100 corrosion degree |
| Pour point, DIN ISO 3016 | <= -40 °C |
| Minimum shelf life from the date of manufacture – in a dry, frost-free place and in the unopened original container, approx. | 60 months |
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
