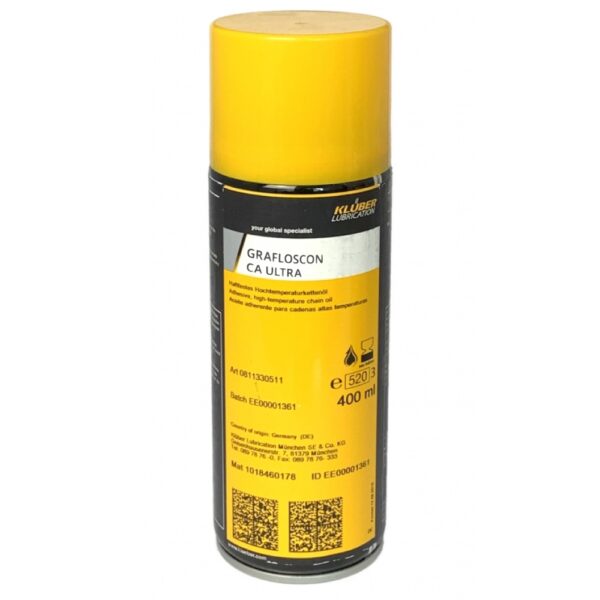

Klüber GRAFLOSCON CA ULTRA Adhesive lubricant 400ml spray can
€ 45,54
- Description
- FAQ
- Additional information
- Reviews (9)
Description
GRAFLOSCON CA ULTRA Spray – Adhesive lubricant containing graphite NLGI 1 | N° 081215
- GRAFLOSCON CA ULTRA SPRAY is a solvent-containing mineral oil base adhesive lubricant with a high content of solid particles (fine graphite) applied by spray can.
- It contains an Al complex soap, can carry extreme loads and has good anticorrosion properties.
- It does not contain bitumen, heavy metals or chlorine.
- The propellant is free from CFC.
- Temperature range: -60°C to +200°C
- Volume: 400ml spray
Benefits for your application
- Easy application
- Suitable for small gears and surfaces
- Can carry high loads
- Suitable as an assembly aid
- Free from bitumen, heavy metals and chlorine
- Free from CFC
Applications
- GRAFLOSCON CA ULTRA SPRAY is suitable for the lubrication of small open gears (spur and bevel gears), slide and guide rails, cam disk operating surfaces, actuators, spindles, chains and wire ropes, even when subject to water and high temperatures
- It is not suitable for friction pulley ropes
- Can also be used to check the contact pattern of the components listed above
Application notes
- Application by spray can. GRAFLOSCON CA ULTRA SPRAY must not be exposed to direct heat (sunlight, radiant heaters, open fire, etc.)
Technical specifications
| Texture | pasty |
| Density at 20 °C | approx. 1.07 g/cm³ |
| Colour space | black |
| Kinematic viscosity of the base oil 40 °C | approx. 500 mm²/s |
| Thermal stability of the lubricating film | 200 °C |
| Functional lubricant film | approx. -30 °C |
| NLGI grade, DIN 51818 | 1 |
| Drop point, DIN ISO 2176 | >= 220 °C |
| Four-ball tester, welding load, DIN 51350 pt. 04 | >= 4 200 N |
| Water resistance, DIN 51807 pt. 01, 3 h/40°C | 0 – 40 |
Hazard Statements (CLP)
Signal word: Danger.
Hazard Statements (H-Sentences)
- H222: Extremely flammable aerosol.
- H229: Pressurized container: May burst if heated.
- H304: May be fatal if swallowed and enters airways.
- H315: Causes skin irritation.
- H412: Toxic to aquatic life with long-lasting effects.
Precautionary Statements (P-Sentences)
Prevention:
- P210: Keep away from heat, hot surfaces, sparks, open flames, and other ignition sources. No smoking.
- P211: Do not spray on an open flame or other ignition source.
- P251: Do not pierce or burn, even after use.
Response:
- P301 + P310: IF SWALLOWED: Immediately call a POISON CENTER/doctor.
- P331: Do not induce vomiting.
Storage:
- P410 + P412: Protect from sunlight and do not expose to temperatures exceeding 50 °C/122 °F.
Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
Downloads
Additional information
| Property | – |
|---|
