Klüber Grafloscon C-SG 500 Plus Adhesive lubricant 400g cartridge
€ 43,14
- Description
- FAQ
- Additional information
- Reviews (10)
Description
Adhesive lubricant
- GRAFLOSCON C-SG 500 PLUS, a sprayable adhesive lubricant based on mineral oil, is aluminium complex saponified and contains solid lubricant (fine graphite). It is resistant to high pressure and is provided with anti-wear additives, adhesion improvers and corrosion inhibitors.
- GRAFLOSCON C-SG 500 PLUS is free from bitumen, solvents and lead.

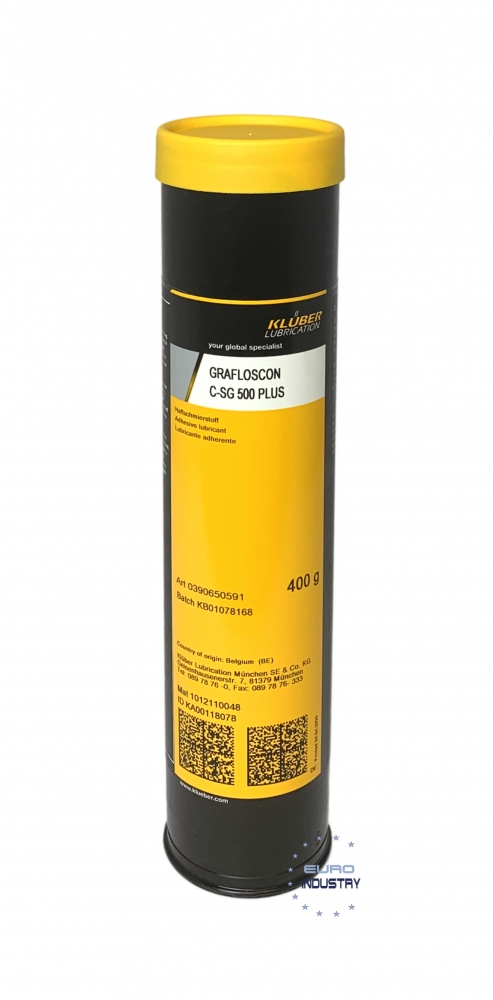

- Size: 400g cartridge
- Available in 400g cartridge, 25kg bucket
Benefits for your application:
- Operational lubricant for open drives, sliding and guide rails, rubbing seals
- No lead additives
- Can be applied through automatic spraying equipment
- Suitable for increased component temperatures
Application:
- GRAFLOSCON C-SG 500 PLUS can be used to lubricate open rolling drives (spur and bevel gears), slide and guide rails, large chain drives, etc., especially at high component temperatures. It is particularly suitable for rubbing seals (steel/steel) in rotary kilns or drums.
Product data:
| Article number | 39065 |
| Solid lubricants, percentage | approx. 10 % by weight |
| Colour space | black |
| Texture | homogeneous |
| Density at 20 °C | approx. 0.96 g/cm³ |
| Thermal stability of the lubricating film | 200 °C |
| Functional lubricant film | -30 °C |
| FZG scuffing test, based on DIN ISO 14635, A/2,76/50, scuffing load stage | >= 12 |
| Copper corrosion, DIN 51811, (lubricating grease), 24h/100°C | 1 – 100 corrosion degree |
| Four-ball tester, welding load, DIN 51350 pt. 04 | >= 5 000 N |
| Water resistance, DIN 51807 pt. 01, 3 h/40°C | 0 – 40 |
| Minimum shelf life from the date of manufacture – in a dry, frost-free place and in the unopened original container, approx. | 24 months |
Hazard Information (CLP)
Signal word: Warning.
Hazard statements (H-phrases)
- H317: May cause an allergic skin reaction.
Precautionary statements (P-phrases)
Prevention:
- P272: Contaminated work clothing should not be allowed out of the workplace.
- P280: Wear protective gloves.
Response:
- P302 + P352: IF ON SKIN: Wash with plenty of soap and water.
- P333 + P313: If skin irritation or rash occurs: Get medical advice/attention.
- P362 + P364: Take off contaminated clothing and wash it before reuse.
Hazardous components which must be listed on the label:
- Condensation products of fatty acids, tall oil with 2-amino-2-ethylpropanediol
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
