Description

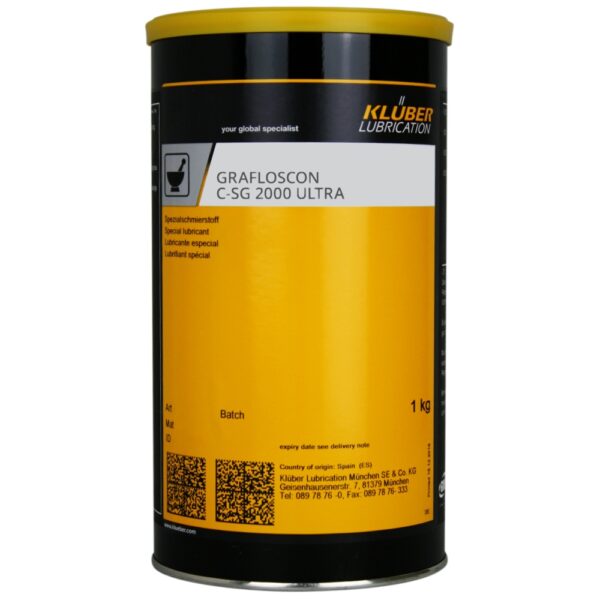

GRAFLOSCON C-SG 2000 ULTRA Operational lubricant for open drives | N° 039078
- GRAFLOSCON C-SG 2000 ULTRA is a sprayable adhesive lubricant with a mineral base oil. It contains aluminium complex soap and solid lubricant particles of fine graphite. It is resistant to high pressure and contains antiwear additives, adhesion improvers and corrosion inhibitors.
- The raw materials used for the manufacture of GRAFLOSCON C SG 2000 ULTRA are free of bitumen, solvents and chlorine.
- Size: 1kg
- Packaging type: can
- Also available in: 25kg bucket, 50kg bucket, 180kg barrel
Benefits for your application
- Prevents wear even at high surface pressures
- Contains solid lubricant particles for high load-carrying capacity
- Ready-to-use
- Easy application through spraying systems
- Excellent tooth flank protection in case of extremely high loads and vibrations
- Especially suitable for application under hot climatic conditions
- Lubricating film effective for a long period of time
Applications
- GRAFLOSCON C-SG 2000 ULTRA is designed for spray lubrication of open pinion gears exposed to extremely high tooth flank loads on rotary kilns, tube mills, and line blenders which are used in the cement, lime, gypsum, mining, and chemical industries.
- GRAFLOSCON C-SG 2000 ULTRA is also suitable for drives exposed to high oscillations or drives in which rolling bearings are mounted.
Application notes
- GRAFLOSCON C-SG 2000 ULTRA is applied to the gear mainly through automatic spray systems. Smaller drives are also lubricated by brush, forced-feed lubrication systems or with the Klübermatic LB manual spray gun.
Technical specifications
| Colour space | black |
| Application, in automatic spray systems | approx. 15 – 120 °C |
| Functional lubricant film | ≥ -20 °C |
| Thermal stability of the lubricating film, depends on the relubrication | ≤ 250 °C |
| Density, Klüber method: PN 024, 20°C | approx. 0.98 g/cm³ |
| Worked penetration, DIN ISO 2137 / ASTM D217, 25°C, lower limit | 360 0.1 mm |
| Worked penetration, DIN ISO 2137 / ASTM D217, 25°C, upper limit | 400 0.1 mm |
| Kinematic viscosity of the base oil, DIN EN ISO 3104 / DIN 51562-1 / ASTM D445 / ASTM D7042, 40°C | approx. 2000 mm²/s |
| Dropping point, DIN ISO 2176 / IP 396 | ≥ 195 °C |
| Water resistance, DIN 51807-1, 3 h, 40°C | 0 – 40 rating |
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
