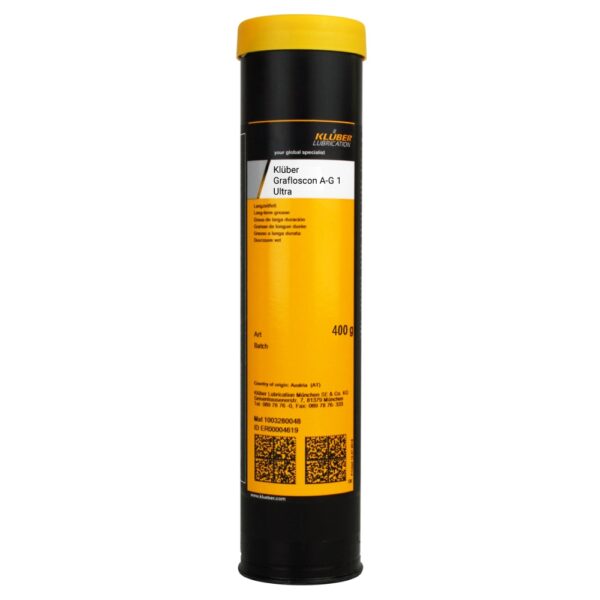

Klüber Grafloscon A-G1 Ultra Graphite adhesive lubricant 400g
€ 52,26
- Description
- FAQ
- Additional information
- Reviews (7)
Description
GRAFLOSCON A-G1 ULTRA Priming and contrast lubricant containing graphite for open drives
- GRAFLOSCON A-G 1 ULTRA is an easy-to-spread adhesive lubricant based on an aluminium complex soap thickener, mineral oil and a high content of solid lubricant (fine graphite).
- GRAFLOSCON A-G 1 ULTRA is suitable for high pressures, has anti-corrosion properties and is free of raw materials containing bitumen, solvents, heavy metals, chlorine or solid matters.
- Temperature range: -15°C to +200°C
- Volume: 400g cartridge
- Also available in: Bucket 5 kg, Bucket 25 kg
Benefits for your application
- Ready-to-use product – no product preparation required
- High load-carrying capacity and adhesiveness – prevents metal-to-metal contact of tooth flanks
- Long durability of lubricating film – protects tooth flanks even during prolonged gear alignment procedures
- Priming and contrast lubricant – for determining the parallel alignment of tooth flanks
Application
- GRAFLOSCON A-G 1 ULTRA has been developed as a priming lubricant for large open girth gear and pinion drives. It can also be used as a contrast lubricant to check the loadcarrying pattern during the alignment of large drives.
- GRAFLOSCON A-G 1 ULTRA is also a lubricant for open rolling-contact gears (e.g. winches), slideways, racks, large chain drives and wire ropes.
Technical specifications
| Article number | 039062 |
| Solid lubricants, percentage | approx. 25 % by weight |
| Colour space | black |
| Texture | short-fibred |
| Texture | homogeneous |
| Density at 20 °C | approx. 1.07 g/cm³ |
| NLGI grade, DIN 51818 | 1 |
| Base oil viscosity at 40 °C, calculated value | approx. 500 mm²/s |
| Thermal stability of the lubricating film | approx. 200 °C |
| Functional lubricant film | approx. -40 °C |
| Lower processing temperature | -15 °C |
| Drop point, DIN ISO 2176, IP 396 | >= 220 °C |
| Minimum shelf life from the date of manufacture – in a dry, frost-free place and in the unopened original container, approx. | 36 months |
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
