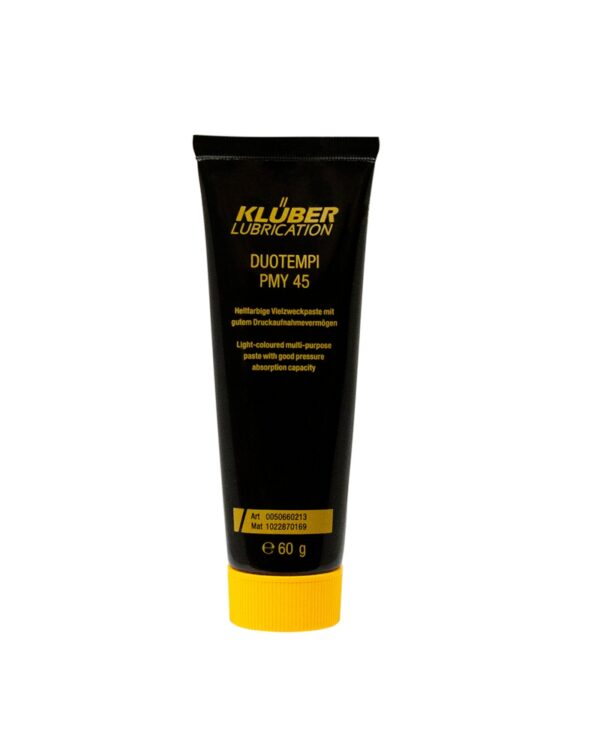

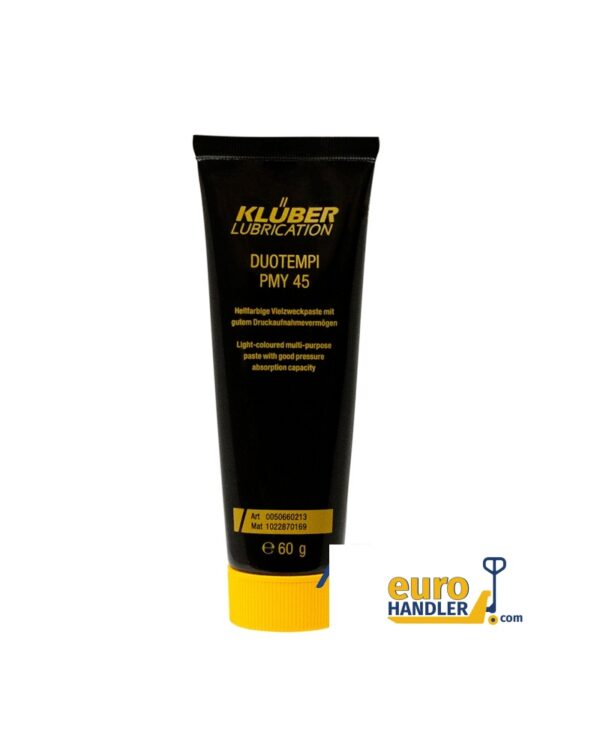

Klüber DUOTEMPI PMY 45 High-pressure lubricating paste 60g tube
€ 28,20
- Description
- FAQ
- Additional information
- Reviews (11)
Description
Application
As a lubricating paste:
For low-speed (plain) bearings, guides, joints, bushes, eccentric units, seals, bolts, and hinges in all fields of plant and machine engineering. For automotive components such as gear shift gates, ball joints, seat rails, steering-knuckle pins or profile gears.
As an assembly paste:
For interference, transition, and loose fits.
As a screw paste:
For austenitic materials (A2-70) and the assembly of screws and bolts under normal temperature conditions.
Application notes
Before applying DUOTEMPI PMY 45 it is important to clean and degrease all contact surfaces and to apply the paste in a thin layer using a brush, plastic sponge or a dry, lint-free cloth. DUOTEMPI PMY 45 is compatible with many sealing materials and elastomers; however, we recommend undertaking a materials compatibility test with the lubricant used prior to series application.
The friction values indicated on page 2 in the Section Product Data were determined with two different materials. Other materials/surfaces have to be checked accordingly.
Product data:
| Lower service temperature | -40 °C / -40 °F |
| Upper service temperature | 120 °C / 248 °F |
| Colour space | beige |
| Texture | short-fibred |
| Texture | homogeneous |
| Density at 20 °C | approx. 1.20 g/cm³ |
| Worked penetration, DIN ISO 2137, 25 °C, lower limit value | 245 x 0.1 mm |
| Worked penetration, DIN ISO 2137, 25 °C, upper limit value | 275 x 0.1 mm |
| Drop point, DIN ISO 2176, IP 396 | >= 190 °C |
| Four-ball tester, welding load, DIN 51350 pt. 04 | >= 3 200 N |
| Friction coefficient screw test, measured with hexagon bolts M10x50-A2-70, DIN EN ISO 4017, tightening speed n = 5 rpm, number of screws = 20, material of the nut A2, face material 42CrMo4 with roughness Ra 1.6, tightening torque MA = 40 Nm, averaged bearing surface friction coefficient (initial tightening) |
0.1 |
| Friction coefficient screw test, measured with hexagon bolts M10x50-A2-70, DIN EN ISO 4017, tightening speed n = 5 rpm, number of screws = 20, material of the nut A2, face material 42CrMo4 with roughness Ra 1.6, tightening torque MA = 40 Nm, standard deviation (S) of averaged bearing surface friction coefficient (initial tightening) |
0.003 |
| Friction coefficient screw test, measured with hexagon bolts M10x50-A2-70, DIN EN ISO 4017, tightening speed n = 5 rpm, number of screws = 20, material of the nut A2, face material 42CrMo4 with roughness Ra 1.6, tightening torque MA = 40 Nm, averaged thread friction coefficient (initial tightening) |
0.09 |
| Friction coefficient screw test, measured with hexagon bolts M10x50-A2-70, DIN EN ISO 4017, tightening speed n = 5 rpm, number of screws = 20, material of the nut A2, face material 42CrMo4 with roughness Ra 1.6, tightening torque MA = 40 Nm, standard deviation (S) of averaged thread friction coefficient (initial tightening) |
0.011 |
| Minimum shelf life from the date of manufacture – in a dry, frost-free place and in the unopened original container, approx. |
24 months |
Hazard Statements (CLP)
Signal word: Danger.
Hazard Statements (H-phrases)
- H318: Causes serious eye damage.
Precautionary Statements (P-phrases)
Prevention:
- P280: Wear eye protection/face protection.
Response:
- P305 + P351 + P338 + P310: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Immediately call a POISON CENTER/doctor.
Hazard-determining component(s) for labeling
- Calcium dihydroxide
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
