KD-CHECK SD-1 Wet developer for crack detection ISO 3452-2 500ml Spray
€ 15,54
- Description
- FAQ
- Additional information
- Reviews (6)
Description

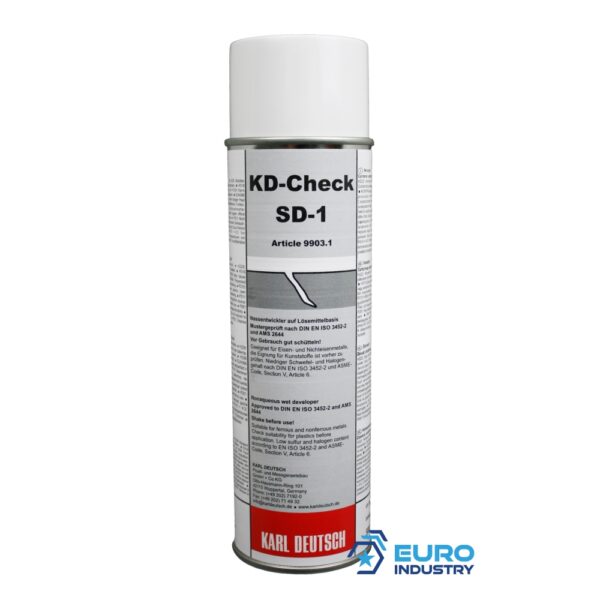

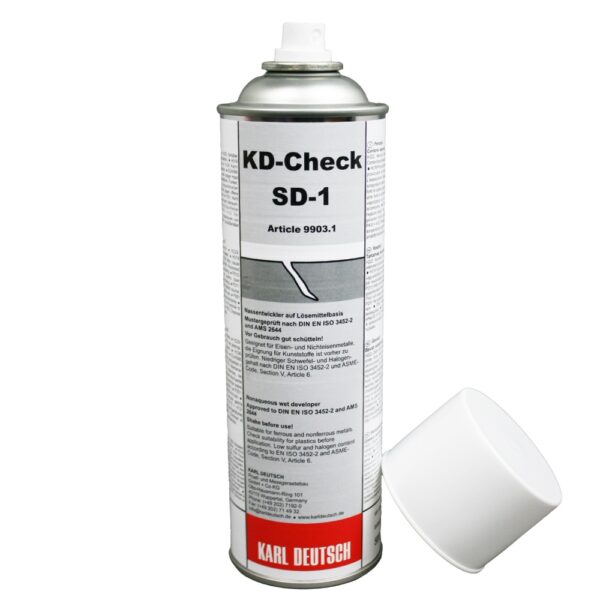

Karl Deutsch KD-CHECK SD-1 solvent-based wet developer spray is used for any test equipment system for non-destructive testing of surface cracks and pores using the dye penetration test method.
Application
- For crack detection on almost all metallic and non-metallic material surfaces, e.g. steel, plastic, aluminum, brass (suitability for plastics must be checked beforehand)
- Crack detection system approved to DIN EN ISO 3452 in accordance with TRGS 614

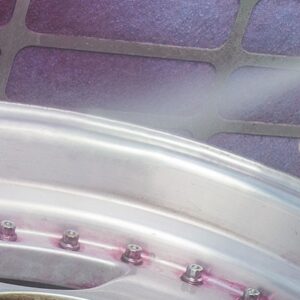

- After intermediate cleaning (KD-Check PR-1) and drying, a thin film of white wet developer is applied
- After a processing time (5 – 10 minutes) the dye penetrant (e.g. KD-CHECK RDP-1) is drawn out and becomes visible as a red trace
Characteristics
- Solvent-based wet developer
- Developer for form d and e
- Basis: alcohol/acetone
- Application by spray can and electrostatic spraying
- Fast drying
- Forms a fine and uniform developer layer
- Excellent contrast of background and crack indication
- Easy to remove from test surfaces
- Low sulfur and halogen content according to DIN EN ISO 3452-2 and ASME Code, Section V, Article 6
- Can be used in a temperature range from -30 °C to +50 °C
- Type-tested according to DIN EN ISO 3452-2 and -6, approved according to AREVA NP TLV 9017
- Listed on QPL-AMS 2644
- Size: 500ml
- Packaging type: aerosol spray

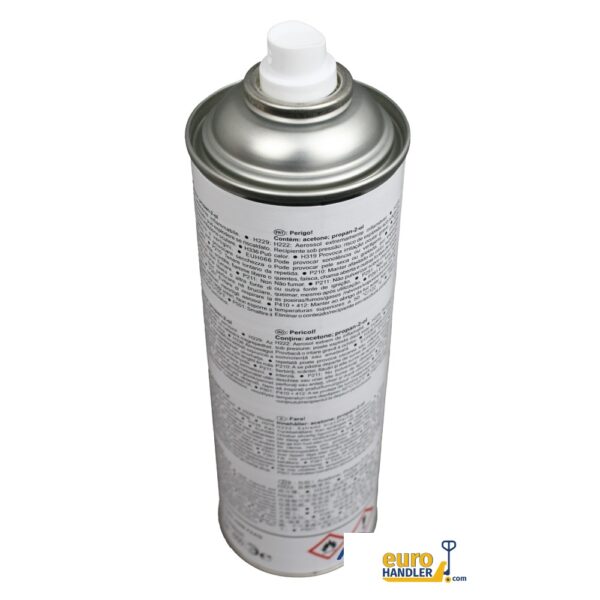

Hazard Warnings (CLP)
Signal word: Danger
Hazard Statements (H-phrases)
- H222: Extremely flammable aerosol.
- H229: Pressurised container: May burst if heated.
- H319: Causes serious eye irritation.
- H336: May cause drowsiness or dizziness.
Supplemental Hazard Information
- EUH066: Repeated exposure may cause skin dryness or cracking.
Safety Statements (P-phrases)
Prevention:
- P210: Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking.
- P211: Do not spray on an open flame or other ignition source.
- P251: Do not pierce or burn, even after use.
- P261: Avoid breathing dust/fume/gas/mist/vapours/spray.
Storage:
- P410+P412: Protect from sunlight. Do not expose to temperatures exceeding 50 °C/122 °F.
Disposal:
- P501: Dispose of contents/container to hazardous waste.
Other Hazards
- No data available.
Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,
Â
KARL DEUTSCH Prüf- und Messgerätebau GmbH + Co KG, Otto-Hausmann-Ring 101, 42115 Wuppertal, GERMANY, +49 202 7192 0, [email protected], www.karldeutsch.de
Additional information
| Property | – |
|---|
