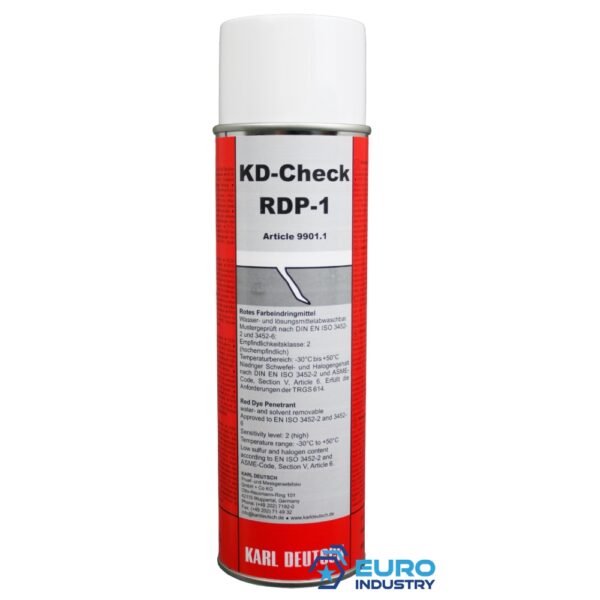

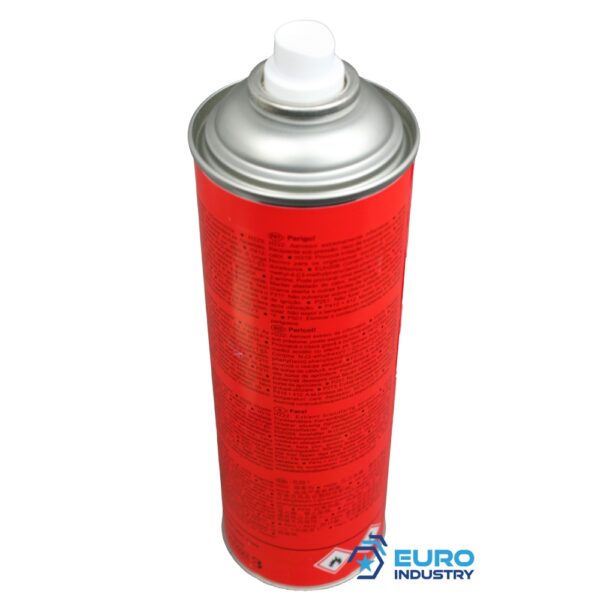

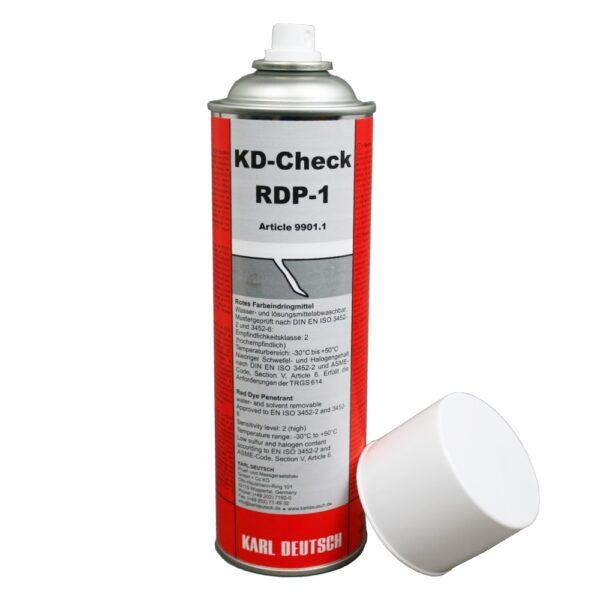

KD-CHECK RDP-1 Red dye penetrant for crack detection 500ml spray
€ 19,14
- Description
- FAQ
- Additional information
- Reviews (8)
Description
Karl Deutsch KD-CHECK RDP-1 red crack detection spray allows non-destructive testing for surface cracks and pores, using the dye penetration test method.
Advantages
- Efficient testing with minimum effort: Only one spray of penetrant, cleaner (KD-Check PR-1) and developer (KD-Check SD-1) are required for successful testing.
- Reduced consumption: Low viscosity and optimum dripping properties lead to reduced test agent consumption
- Easy evaluation: Evaluation is carried out in normal daylight or under daylight lamps
- High test reliability: Strong contrast formation, sample tested according to DIN EN ISO 3452-2 and 3452-6, approved according to AREVA NP TLV 9017
Application
- Particularly suitable for construction sites, repairs, spot checks and series testing
- Suitable for almost all metallic and non-metallic material surfaces such as steel, aluminum, brass or plastics (Suitability for plastics must be checked beforehand)

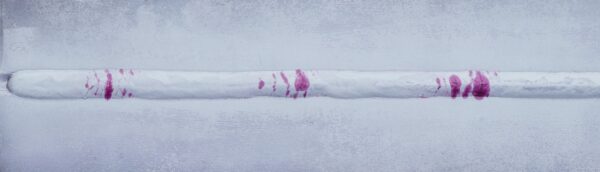

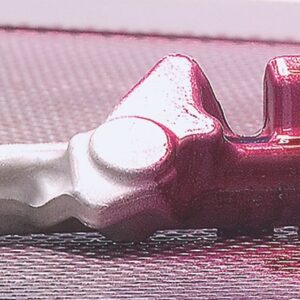

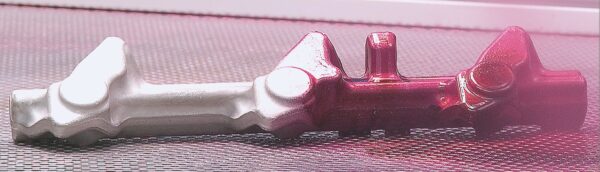

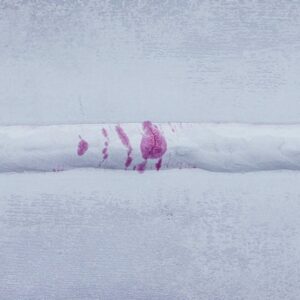

- The red dye penetrant seeps into cracks by capillary action. The processing time (5 – 10 minutes) depends on the crack / pore geometry.
Characteristics
- Red oil-based dye penetrant ensures high efficiency
- Crack detection system is approved according to DIN EN ISO 3452 and meets the requirements of TRGS 614.
- No additional auxiliaries required for the dye penetrant process
- Red dye penetrant effectively penetrates the crack by capillary action
- Exposure time (5 – 10 minutes) varies depending on crack / pore geometry
- Sensitivity class 2
- Water and solvent washable for easy cleaning
- Easy to wash off for clean results
- Excellent wetting properties, especially on smooth surfaces
- Strong contrast formation
- Low sulfur and halogen content according to DIN EN ISO 3452-2 and ASME Code, Section V, Article 6
- Can be used in a temperature range from -30 °C to +50 °C
- Quality tested: Sample tested according to DIN EN ISO 3452-2 and 3452-6, approved according to AREVA NP TLV 9017.
- Size: 500ml
- Packaging type: aerosol spray
Hazard Warnings (CLP)
Signal word: Danger
Hazard Statements (H-phrases)
- H304: May be fatal if swallowed and enters airways.
- H317: May cause an allergic skin reaction.
- H319: Causes serious eye irritation.
- H412: Harmful to aquatic life with long-lasting effects.
Precautionary Statements (P-phrases)
Prevention:
- P273: Avoid release to the environment.
- P280: Wear protective gloves/protective clothing/eye protection/face protection/hearing protection/…
Response:
- P301 + P310: IF SWALLOWED: Immediately call a POISON CENTER/doctor/…
- P302 + P352: IF ON SKIN: Wash with plenty of water/soap.
- P331: Do NOT induce vomiting.
Disposal:
- P501: Dispose of contents/container to hazardous waste.
Other Hazards
- No data available.
Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,
Â
KARL DEUTSCH Prüf- und Messgerätebau GmbH + Co KG, Otto-Hausmann-Ring 101, 42115 Wuppertal, GERMANY, +49 202 7192 0, [email protected], www.karldeutsch.de
