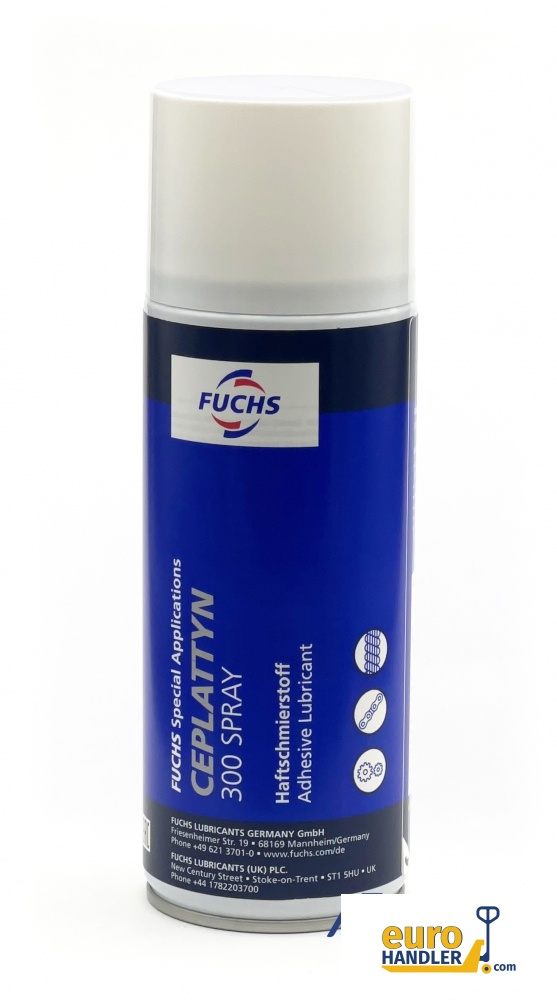

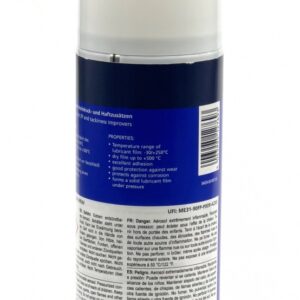

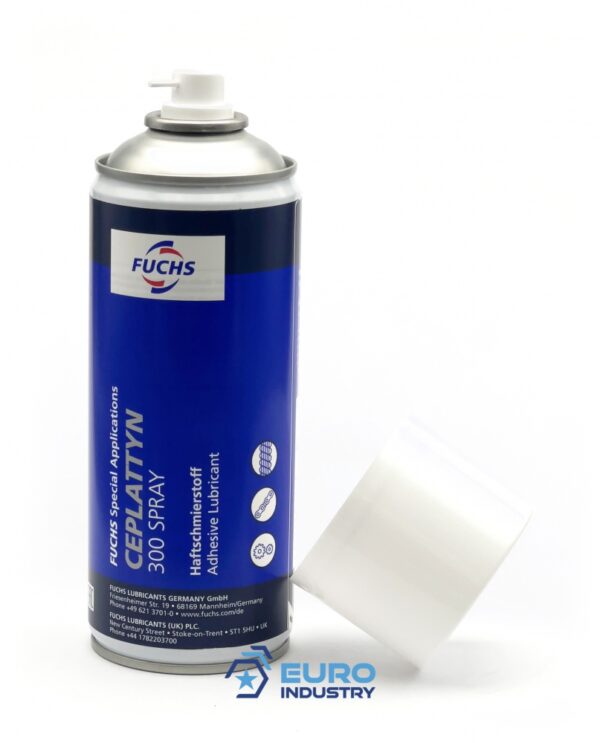

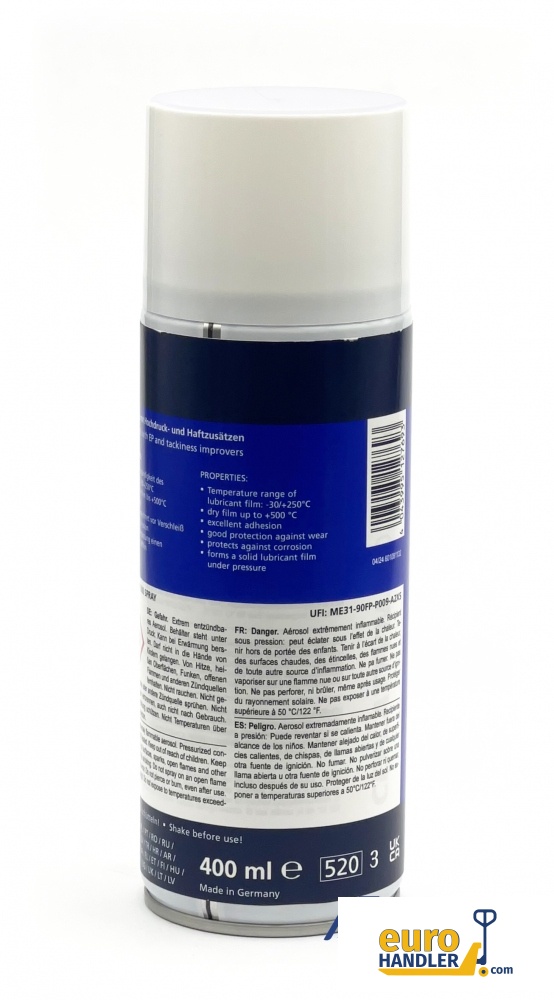

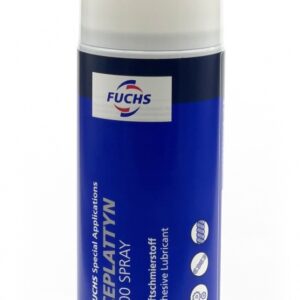

Fuchs Ceplattyn 300 Spray Graphite Adhesive lubricant 400ml
€ 17,94
- Description
- FAQ
- Additional information
- Reviews (11)
Description
Fuchs CEPLATTYN 300 SPRAY is a graphite-containing paste spray with EP and tackiness improvers. It is free of bitumen, heavy metals and solvents.
Field of applications
- CEPLATTYN 300 SPRAY is used as a lubricant for open gears, gear racks and sliding surfaces
- It is also used as an assembly paste for bolts/screws and pins
- CEPLATTYN 300 SPRAY can also be used for lubrication and conservation of wire ropes
- Furthermore, CEPLATTYN 300 SPRAY is applied to chains, sliding surfaces and gears in steel hydraulics construction as well as in open cast mining and pits (approvals available)
Characteristics
- Temperature range of lubricant film: -30 / +250 °C
- Dry lubricating film up to +500 °C
- Very good adhesion
- Excellent protection against wear
- Protects against corrosion
- Forms a solid lubricant film under pressure
- Forms a ‘dry’, dust-repellant lubricating film
- Water-resistant
Application notes
- Apply CEPLATTYN 300 SPRAY uniformly onto cleaned surfaces. CEPLATTYN 300 is also available in standard packaging
Technical data
| Â Manufacturer No. | Â 601081132 |
|  Color |  black |
|  Temperature range |  -30 / +250 ° C |
|  Dry lubricating film up to |  +500 ° C |
|  Thickener |  Al-X |
| Â Solid lubricants | Â C |
|  Base oil viscosity [40°C] |  1300 mm²/s |
| Â Erichsen screw test [M10x60 Fv = 30 kN]Â | Â |
| Â Thread friction value | Â 0,07 |
| Â Top friction value | Â 0,1 |
Â
Branches
- Agriculture, forestry
- Cement
- Construction
- Machinery, equipment
- Mining, quarrying, exploration
- Other industries
- Power generation
- Steel, metals
- Transport
- Consumer, aftermarket
Hazard Warnings (CLP)
Signal word: Danger
Hazard Statements (H-phrases)
- H222: Extremely flammable aerosol.
- H229: Pressurized container: May burst if heated.
Safety Statements (P-phrases)
Prevention:
- P102: Keep out of reach of children.
- P210: Keep away from heat, hot surfaces, sparks, open flames, and other ignition sources. No smoking.
- P211: Do not spray on an open flame or other ignition source.
- P251: Do not pierce or burn, even after use.
Storage:
- P410+P412: Protect from sunlight. Do not expose to temperatures exceeding 50 °C.
Other Hazards
- If handled according to the usual precautions for mineral oil and chemical products, no specific hazards are known. Do not release the product uncontrollably into the environment.
- Endocrine-disrupting properties: The substance/mixture contains no components in concentrations of 0.1% or more that exhibit endocrine-disrupting properties as defined by REACH Article 57(f) or EU Delegated Regulations 2017/2100 and 2018/605.
Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,
Â
FUCHS LUBRICANTS GERMANY GmbH, Friesenheimer Str. 19, 68169 Mannheim, GERMANY, +49 621 3701-0, [email protected], www.fuchs.com
Downloads
Additional information
| Property | – |
|---|
