Electrolube UR5044RP250G Blue PUR Potting Compound 250 g
€ 37,00
Global Product Code: 164-292
- Description
- FAQ
- Additional information
- Reviews (0)
Description
Product Details
Electrolube Polyurethane Resin

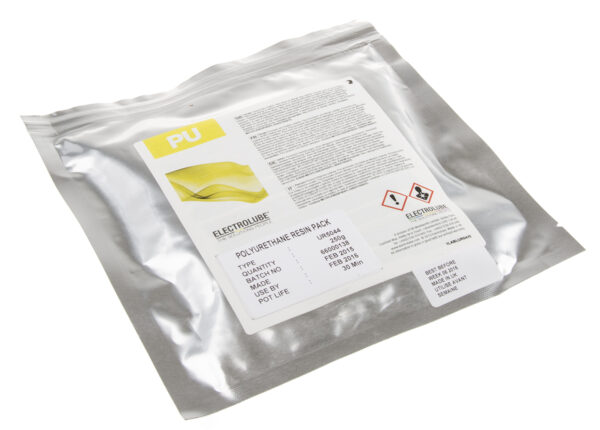

The Electrolube 250g dark blue polyurethane resins potting compound is a 2-part encapsulating and polyurethane resin which is supplied in a handy duo-sachet pack for easy mixing and pouring with no mess. A high performance, flame retardant resin, ideally suited for encapsulating delicate electrical and electronic components and assemblies where conditions can be extreme and varied.
Features and Benefits
Excellent electrical properties
Flexible even at temperature extremes
Excellent low temperature performance to -70 °C
Cure time of 24 hours at 23°C
Shelf life is 12 months
Low moisture sensitivity during and after cure
Soft and re-enterable
Operating temperature ranges between -70°C and 120°C
Flexible even at temperature extremes
Excellent low temperature performance to -70 °C
Cure time of 24 hours at 23°C
Shelf life is 12 months
Low moisture sensitivity during and after cure
Soft and re-enterable
Operating temperature ranges between -70°C and 120°C
Certifications
UL 94 approved
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
Specifications
| Trade Name | UR5044 |
|---|---|
| Product Material | PUR |
| Package Type | Pack |
| Package Size | 250 g |
| Special Properties | Reenterable |
| Cure Time | 24 h |
| Hardness | 40 Shore A, 60 Shore A, 80 Shore A |
| Thermal Conductivity | 0.25W/mK |
| Colour | Blue |
| Maximum Operating Temperature | +120°C |
| Minimum Operating Temperature | -70°C |
| Operating Temperature Range | -70 → +120 °C |
Additional information
| Trade Name | UR5044 |
|---|---|
| Product Material | PUR |
| Package Type | Pack |
| Package Size | 250 g |
| Special Properties | Reenterable |
| Cure Time | 24 h |
| Hardness | 40 Shore A, 60 Shore A, 80 Shore A |
| Thermal Conductivity | 0.25W/mK |
| Colour | Blue |
| Maximum Operating Temperature | +120°C |
| Minimum Operating Temperature | -70°C |
| Operating Temperature Range | -70 → +120 °C |
