Divinol DHG ISO 46 Hydraulic Oil HLP-D zinc-based 20L
€ 65,94
- Description
- FAQ
- Additional information
- Reviews (11)
Description
Divinol DHG ISO 46 is a zinc-based, detergent-type hydraulic oil with high lubricity and excellent corrosion protection (HLP-D ISO VG 46). It exceeds the requirements of DIN 51524 Part 2.

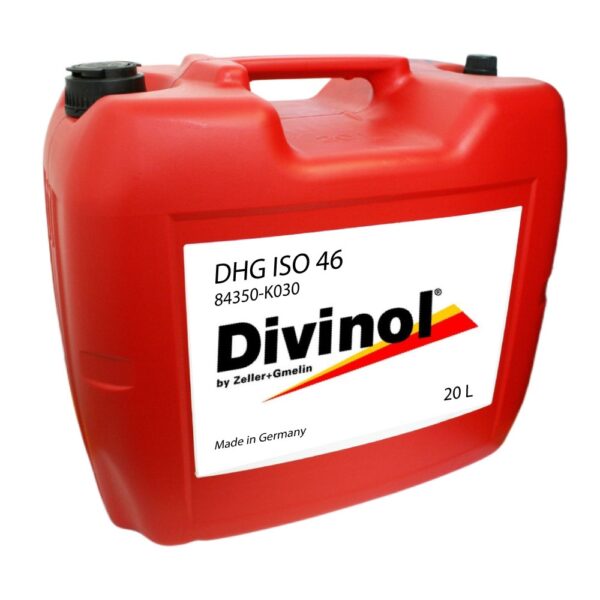

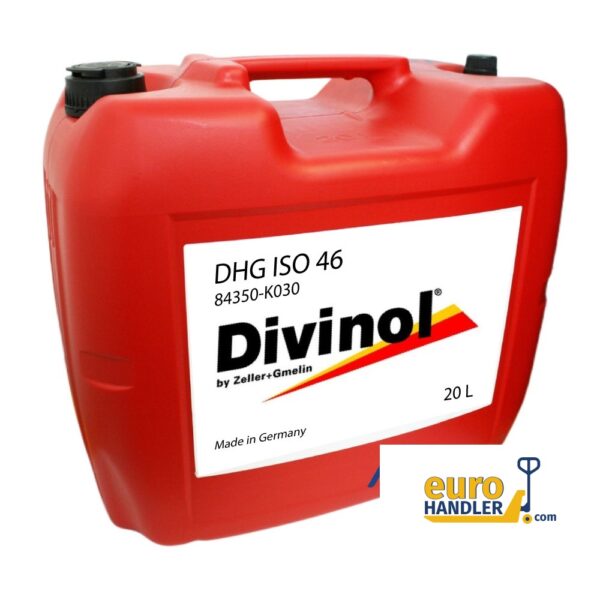

- Pack size: 20 L canister
- Also available in: 60 L drum, 200 L drum
Applications
- Mobile and stationary hydraulic systems with hydrostatic drives
- Machining tools: lathes, drilling and milling machines
- Injection molding machines exposed to coolant ingress
- Systems at risk of condensation due to temperature fluctuations
Specifications and Approvals
- HLP-D according to DIN 51524 Part 2 (except demulsifying behaviour)
- FZG test A/8.3/90: load stage > 12
- Covers the application range of HLP-type lubricated oils
Features
- Detergent and dispersant additive technology
- Very high lubricating performance
- Excellent wear and corrosion protection
- High oxidation stability
- Zinc-based formulation for enhanced wear protection
- Good air release properties (4 min at 50 °C)
Technical Data
| Physical Properties | |
|---|---|
| Viscosity grade (ISO VG) | 46 |
| Color | lighter than 4.0 (DIN ISO 2049) |
| Density (15 °C) | 860 kg/m³ (DIN EN ISO 12185) |
| Viscosity (40 °C) | 46 mm²/s (ASTM D7042) |
| Viscosity (100 °C) | 6.9 mm²/s (ASTM D7042) |
| Viscosity index | 114 (ASTM D2270) |
| Pour point | ≤ -24 °C (ASTM D7346) |
| Flash point (Cleveland) | > 210 °C (DIN ISO 2592) |
| Water content | < 0.05 % (DIN 51777 A) |
| FZG test A/8.3/90 | load stage > 12 (DIN 51354) |
| Air release (50 °C) | 4 min (DIN ISO 9120) |
| Oxidation residue (ash) | 0.2 % weight (DIN EN ISO 6245) |
Notes
- Divinol DHG ISO 46 is ideal for systems exposed to coolant or water contamination.
- Please observe the equipment manufacturer’s guidelines.
- Formulated with zinc for active wear protection.
- Cleaning additives help reduce contamination in heavily stressed systems.
Â
Zeller+Gmelin GmbH & Co. KG, Schlossstrasse 20, 73054 Eislingen/Fils, GERMANY, +49 7161 802-0, [email protected], www.zeller-gmelin.de
