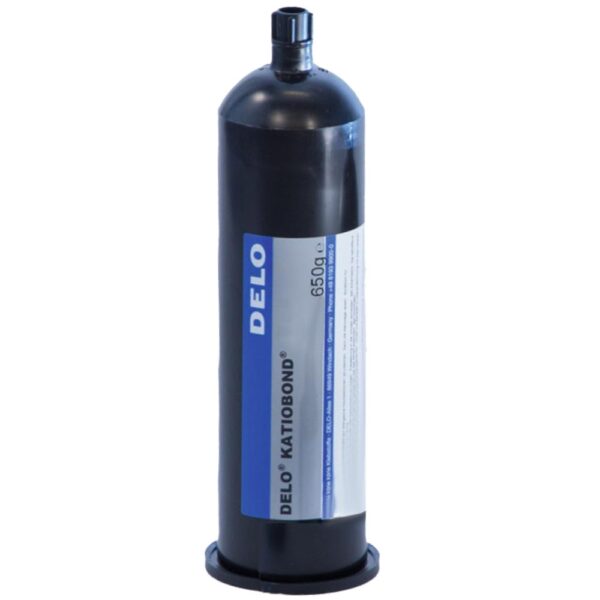

Delo Katiobond EG6133 1-component Epoxy Resin UV-curing 650g cartridge
€ 661,14
- Description
- FAQ
- Additional information
- Reviews (6)
Description
DELO KATIOBOND EG6133 modified epoxy resin | 1C | UV-curing
- Free of solvents
- No corrosive effect, tension-equalizing, flowable, unfilled
- Pack size: 650 g cartridge
Function
- Sealant
- Electronic encapsulant
- Encapsulant / potting compound
Aplication
- -40 to +160 °C
- Pin potting
Technical specifications
| Curing | |
| Suitable lamp types | LED 365 nm, UVA |
| Minimum irradiation dose LED 365 nm | 1400 mW·s/cm² |
| Typical irradiation time intensity 200 mW/cm² LED 365 nm | 30 s |
| Typical curing time at rt approx. + 23 °C irradiated | 24 h |
| Processing | |
| Processing time in standard climate +23 °C / 50 % r. h. | 14 d |
| Storage life in unopened original container at 0 °C to +25 °C | 9 month(s) |
| Technical properties | |
| Color in cured condition in 1 mm layer thickness | blue |
| Transparency in cured condition in 1 mm layer thickness | transparent |
| Parameters | |
| Density by the criteria of DIN EN ISO 2811-3 | liquid | 1.1 g/cm³ |
| Viscosity liquid | Rheometer | Shear rate: 10 1/s | 4300 mPa·s |
DELO KATIOBOND EG 6133, DELO KATIOBOND EG-6133
DELO Industrie Klebstoffe GmbH & Co. KGaA, DELO-Allee 1, 86949 Windach, GERMANY, +49 8193 9900-0, [email protected], www.delo.de
Downloads
Additional information
