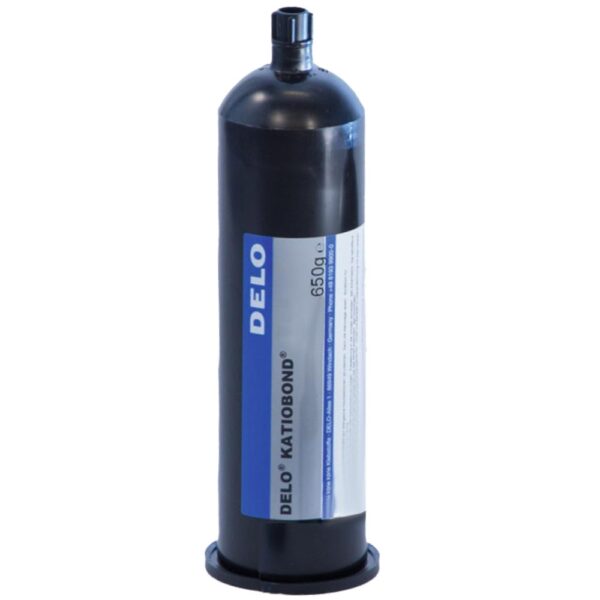

Delo Katiobond 4594 Light-activated adhesive high-viscous 600g
€ 731,94
- Description
- FAQ
- Additional information
- Reviews (14)
Description
Delo Katiobond 4594 Light-activated adhesive, high-viscous
Base
- modified epoxy resin
- one-component, solvent-free, light-activated, thixotropic
Use
- especially for rigid bondings and sealings for example for the fixing of coil wires and components
- for the bonding of metal, glass, plastic and other materials as well as for the coating, fixing or sealing of electronic components
- also suitable for the bonding of opaque components through preactivation
- the cured product is normally used in a temperature range of -40 °C to +150 °C; depending on
- the application, other limits may be more reasonable
- positively tested according to UL 94 HB
- compliant with RoHS directive 2015/863/EU
- halogen-free according to IEC 61249-2-21
Processing
- the product is supplied ready for use; in case of cool storage, it must be ensured that the
- container is conditioned to room temperature before use
- the containers are conditioned at room temperature (max. 25 °C); additional heat addition is not allowed
- the adhesive is usually applied by dispensing
- the adhesive can be processed well from the original container or with DELO dispensing units
- the surfaces to be bonded must be dry as well as free of dust, grease and other contaminations
- use DELOTHEN cleaners for the cleaning of bonding surfaces
- when using aqueous cleaners with alkaline properties, they must be removed from the bonding surface after cleaning through appropriate rinsing cycles
- dispensing valves and product-bearing elements must be carefully cleaned before use,
- residues of other products must be completely removed; acetone or DELOTHEN EP are recommended as cleaners
- for further information please refer to our instructions for use DELO KATIOBOND.
Curing
- curing with UV light or visible light in a wavelength range of 320 – 550 nm. DELOLUX LED
- curing lamps are especially suitable as per the chart below. All standard DELOLUX HID
- discharge lamps are also suitable. For preactivation, only visible light in a wavelength range of 400 – 550 nm can be used.
- the cationic curing mechanism enables adhesive curing after the joining of opaque components after sufficient irradiation
- after irradiation curing until final strength within 24 h at room temperature
- increased temperatures accelerate the reaction, lower temperature decelerate it
- increased intensities shorten the required irradiation time, lower intensities prolong it
Technical specifications
| Â Curing | Â |
|  Suitable lamp types |  LED 365 nm, UVA |
|  Minimum irradiation dose LED 365 nm |  1400 mW·s/cm² |
|  Typical irradiation time intensity 200 mW/cm² LED 365 nm |  30 s |
|  Typical curing time at rt approx. + 23 °C irradiated |  24 h |
| Â Processing | Â |
|  Processing time in standard climate +23 °C / 50 % r. h. |  14 d |
|  Storage life in unopened original container at 0 °C to +25 °C |  9 month(s) |
| Â Technical properties | Â |
| Â Color in cured condition in 1 mm layer thickness | Â blue |
| Â Transparency in cured condition in 1 mm layer thickness | Â transparent |
| Â Parameters | Â |
|  Density by the criteria of DIN EN ISO 2811-3 | liquid |  1.1 g/cm³ |
|  Viscosity liquid | Rheometer | Shear rate: 10 1/s |  4300 mPa·s |
DELO KATIOBOND EG 6133, ​DELO KATIOBOND EG-6133
Â
DELO Industrie Klebstoffe GmbH & Co. KGaA, DELO-Allee 1, 86949 Windach, GERMANY, +49 8193 9900-0, [email protected], www.delo.de
