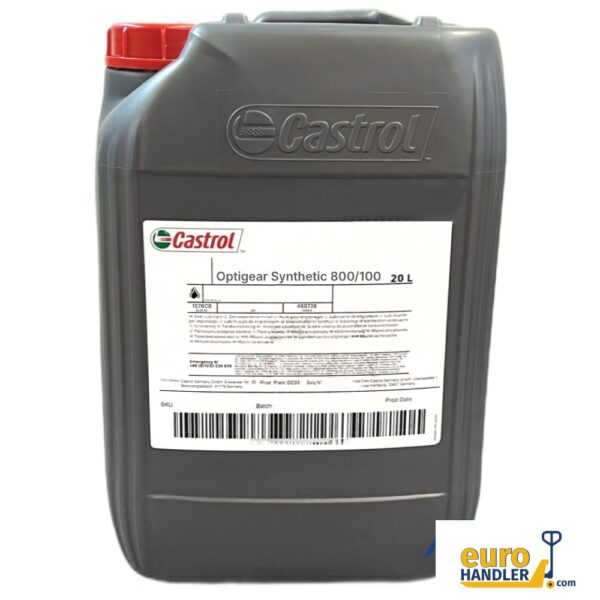

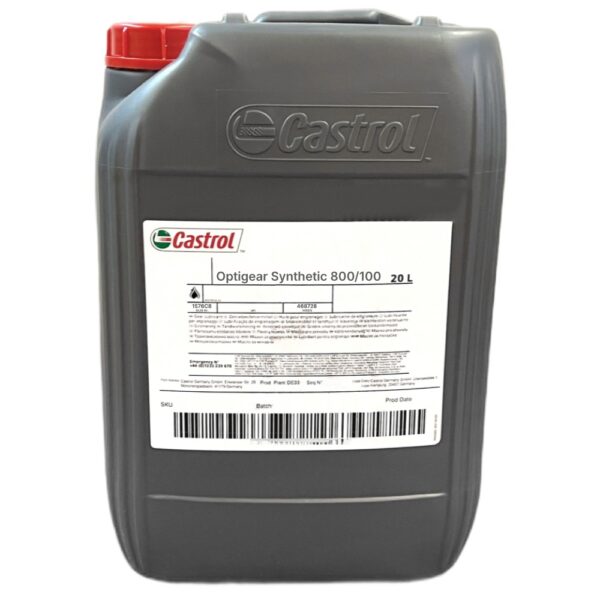

Castrol Optigear Synthetic 800/100 Gear oil CLP 100, 20l canister

Castrol Optigear Synthetic 800/100 (previously known as Tribol 800/100) is a PAG-based gear oil (ISO VG 100) to lubricate heavily loaded gears, bushings and bearings which may operate over a broad range of temperatures from ambient to elevated temperatures (>80°C/176°F).

Application

• The Optigear Synthetic 800/100 is especially suited to reservoirs and circulation systems operating at high temperatures because of heat generated in severe service or high temperatures in the application
• Optigear Synthetic 800/100 are intended for all types of heavily loaded gears including spur, bevel and worm gears

•

  Although well suited for all types of gearing and bearings, the Optigear Synthetic 800/100 is particularly effective in controlling wear and reducing friction between sliding surfaces. In addition, they possess a high degree of affinity for cupric metal alloys

Specifications / Approvals

• DIN 51517-3 (CLP)
• ISO 12925-1

Advantages

• Shear stability – the synthetic base offers high viscosity index (VI) without the addition of VI improvers. In service, VI improvers can shear, lowering oil viscosity and reducing protection critical for gear sets and bearings. The naturally high VI of Castrol Optigear Synthetic 800 assures full protection for components over a wide range of operating temperatures, speeds, and load conditions.
• Long life, extended drain intervals are possible because of the natural aging and oxidation resistance of the synthetic base fluid.
• Advanced Castrol Optigear Synthetic lubrication technology forms friction-fighting, anti-wear films that can significantly reduce local operating temperatures as gear teeth or bearing surfaces come into contact. More protection for components in severe service.
• The extended EP performance of Optigear Synthetic 800 offers protection beyond the capabilities of conventional petroleum oils.
• Wear protection under conditions of extreme temperature fluctuation and high loads. High efficiency and lower oil temperature, especially in worm gear units.
• High corrosion protection of cast and steel surfaces through special additive packages, even in the presence of water.
• Compatibility with non-ferrous metals through well-formulated synergistic additives.
• Potential energy savings as a result of a lower coefficient of friction.
• Reduction of maintenance costs as a result of significantly increased life of the lubricant.

Technical specifications

• Base oil : Polyalkylene glycol
• ISO Viscosity Grade: 100
• Density @ 15°C / 59°F kg/m³: 1050
• Kinematic Viscosity @ 40°C / 104°F mm²/s: 100
• Kinematic Viscosity @ 100°C / 212°F: 18
• Viscosity Index: 205
• Pour Point °C/°F: -45 / -49
• Flash Point – open cup method °C/°F: 280 / 536
• Size: 20l
• Packaging type: canister
• Also available in: 208l barrel
• GLIS number: 1576C8
• Manufacturer number: 468728

BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
