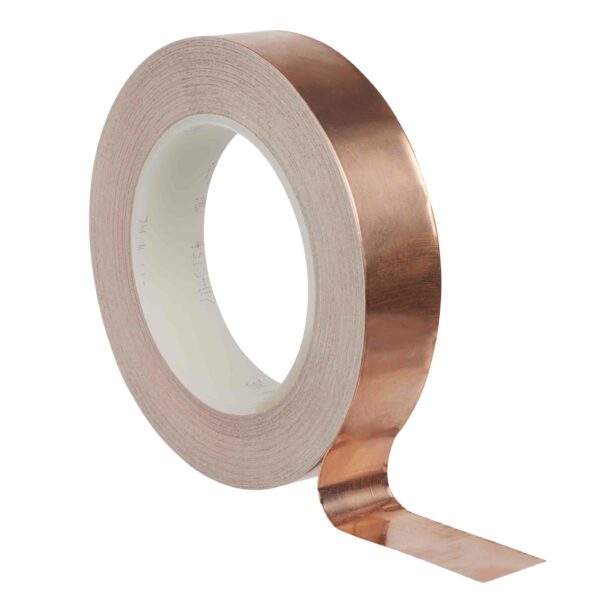

3M 1194 Non-Conductive Metallic Tape, 12mm x 33m

The copper foil shielding tape 1194, has a 1.4-mil smooth copper foil backing and a non-conductive acrylic pressure sensitive adhesive and liner. This makes them ideal for applications where a tape which does not drain the static charge to a grounded substrate is required.

• Nonconductive acrylic adhesive
• Typically applications are, electrical bonding, grounding, and EMI shielding
• The copper foil backing is solderable and resists oxidation and discoloration

Common uses include grounding and EMI shielding in equipment, components and shielded rooms.

3M are a trusted name in tapes and adhesives solutions. From industrial and electronic applications to meeting domestic requirements, 3M supply high quality and reliable tapes and adhesives. RS Components partners with 3M to deliver an extensive and inclusive range of excellent 3M products, with the fantastic and convenient consumer service.

• 110-8054 is a 3M 1181 Conductive Copper Tape, 12.7mm x 16m
• 167-9376 is a 3M 1181 Conductive Copper Tape, 50.8mm x 16m
• 842-0360 is a 3M 1182 Conductive Tin Clad Copper Tape, 19.1mm x 16m
• 842-0409 is a 3M 1183 Conductive Tin Clad Copper Tape, 19.1mm x 16m
• 842-0364 is a 3M 1194 Non-Conductive Tin Clad Metallic Tape, 19.1mm x 33m
• 842-0370 is a 3M 1267 Conductive Metallic Tape, 25.4mm x 16m
• 842-0367 is a 3M 1345 Conductive Tin Clad Metallic Tape, 19.1mm x 16m

Use this metallic tape from 3M to protect your electronic components from electromagnetic and radio-frequency interference. One side is non-conductive, which is useful for applications where the static charge of grounded substrates doesn’t need to be drained. This side of the tape has an acrylic pressure-sensitive adhesive and liner for a strong bond. The other side has a copper backing that withstands oxidation and discolouration, providing long-term performance in harsh environments.

• Copper backing is solderable for a permanent connection to your circuit boards
• Tape length of 33m provides enough for numerous jobs
• Adhesion strength to steel of 4.4N/10mm for a firm hold on surfaces

• Mobile phones
• Printers and scanners

Yes, this tape is flame-retardant and stops burning in a short time when a fire occurs. It can help reduce the spread of flames.

EMI/RFI Shielding Tapes

When using these tapes galvanic compatibility should be taken into account.
