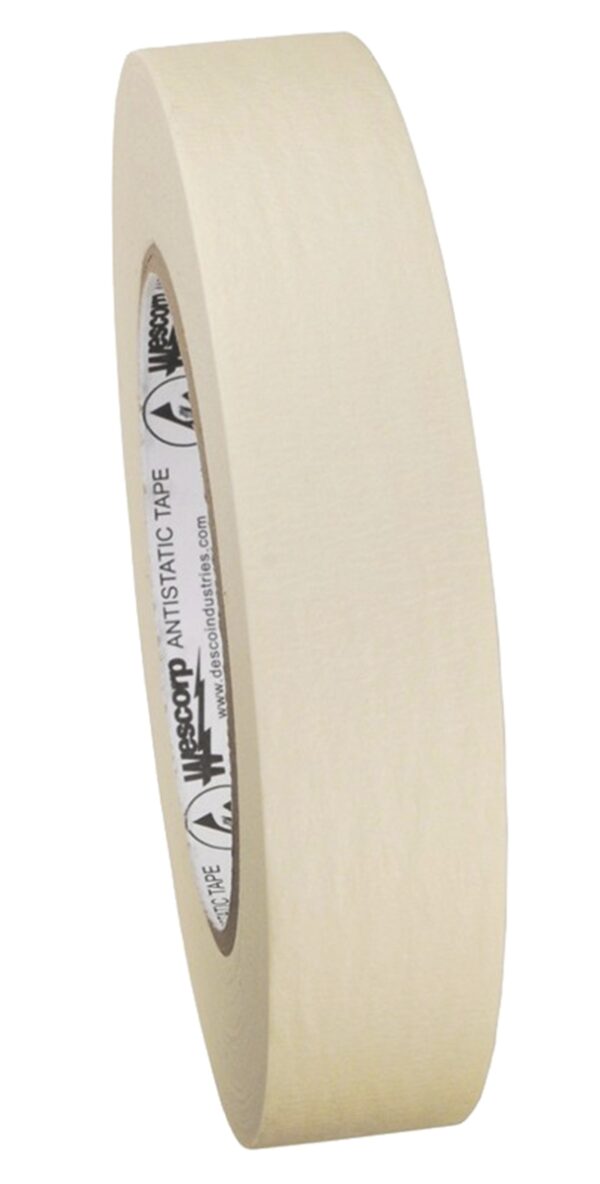

18mm x 54.8m ESD Tape
€ 15,15
Global Product Code: 832-5382
- Description
- FAQ
- Additional information
- Reviews (0)
Description
Product Details
ESD High Temp Masking Tape
ESD high temperature masking tape
Used in applications masking PCB gold features for wave soldering
Temperature Range: -35 °C → +135 °C (-32 °F → +275 °F)
Adhesive surface resistance: 1.2 x 10E11 ohms
Film resistance: < 1 x 10E11 ohms tested per ANSI/ESD S11.11 at 50% RH
Waterproof
Non-toxic
PH neutral
Non-corrosive
Thickness: 7 mil (0.18 mm)
Used in applications masking PCB gold features for wave soldering
Temperature Range: -35 °C → +135 °C (-32 °F → +275 °F)
Adhesive surface resistance: 1.2 x 10E11 ohms
Film resistance: < 1 x 10E11 ohms tested per ANSI/ESD S11.11 at 50% RH
Waterproof
Non-toxic
PH neutral
Non-corrosive
Thickness: 7 mil (0.18 mm)
Specifications
| Length | 54.8m |
|---|---|
| Width | 18mm |
| Dissipative | No |
| Conductive | No |
| Anti-Static | Yes |
| Cleanroom | No |
| Colour | Cream |
| Usage Type | Masking |
| Complies with EN 61340-5-1 | Yes |
Additional information
| Length | 54.8m |
|---|---|
| Width | 18mm |
| Dissipative | No |
| Conductive | No |
| Anti-Static | Yes |
| Cleanroom | No |
| Colour | Cream |
| Usage Type | Masking |
| Complies with EN 61340-5-1 | Yes |
